Manufacturer :SENSEZ

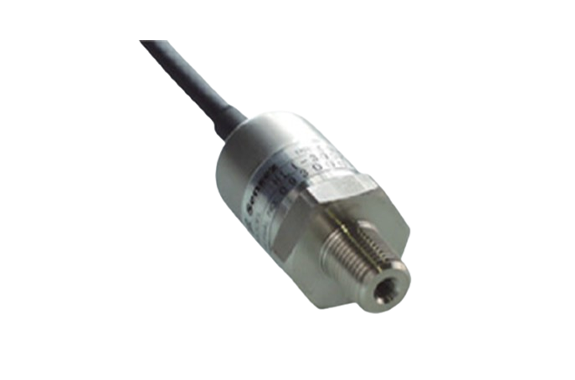

Model :HLV.HLI (HLVN-100KP,HLV-020KP,HLV-050KP,HLV-100KP,HLV-300KP,HLV-500KP,HLV-001MP,HLV-002MP,HLIN-100KP,HLI-020KP,HLI-050KP,HLI-100KP,HLI-300KP,HLI-500KP,HLI-001MP,HLI-002MP)

Pressure sensor with a welded structure that does not use an O-ring in the wetted part

Features

1. Compact
2. Welded structure

• Pressure sensor with a welded structure that does not use an O-ring in the wetted part
• The wetted part is made of SUS316 or SUS316L that has high corrosion resistance.
• Support of a wide range of pressure media such as gas and medicinal solution
• Output signal of 1 to 5 VDC or 4 to 20 mADC from a built-in amplifier circuit

Characteristics

• The wetted part is made of SUS316 or SUS316L that has high corrosion resistance.
• Support of a wide range of pressure media such as gas and medicinal solution
• Negative pressure and compound pressure types are also available.

Specifications

• Accuracy：± 0.5％ F.S. or less
• Output signal of 1 to 5 VDC or 4 to 20 mADC from a built-in amplifier circuit
• Overpressure：＜HLV＞200% of the rated pressure
  ＜HLI＞150% of the rated pressure

Use examples and track record

• Discharge pressure measurement for compressors
• Discharge pressure measurement for pumps
• Level measurement for open tanks
• Pressure control for pure water production devices
• Gas pressure measurement for refrigerators
• Filter clogging detection

Industries where our products are widely used

Precision equipment, semiconductors/liquid crystal, machinery, food/drug production, industrial material, etc.

1. We also manufacture compound pressure sensors (gauge pressure of 500 kPa or less).
2. Make sure that the operating vacuum pressure is 10 kPa abs or more. (Operating temperature range: 0 -60℃)
3. We also manufacture high-accuracy pressure sensors (accuracy: ± 0.25% F.S. or less).

Dimensions(Units:mm)

Cables / wires

Model
