Manufacturer: SHIMADEN CO., LTD.
Model: TH10 Series

Features

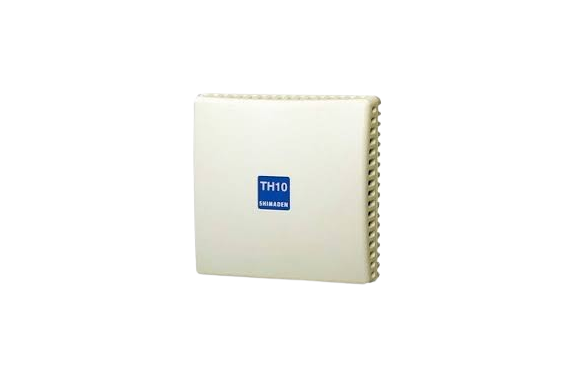

The TH10 series is a wall-mounted temperature and humidity detector designed for general air conditioning use. Its compact and lightweight design makes installation easy. The detector features European terminals for enhanced efficiency and safety. It detects temperatures from 0–50°C and humidity levels from 20–95% RH. The accuracy of detection is ±0.5°C (at 10–40°C) and ±3% RH (at 25°C, 40–80% RH). No DC power supply is required when used for temperature specifications only.

Specification

Temperature specification: Pt100 (3-wire output)
Number of temperature elements: 1 element
Temperature range: 0–50°C
Humidity detection element: Polymer sensor
Number of humidity elements: 1 element
Humidity output types: 0–5VDC, 4–20mADC / 0–100% RH
Power supply voltage: 12–24VDC
Weight: Approximately 60g
