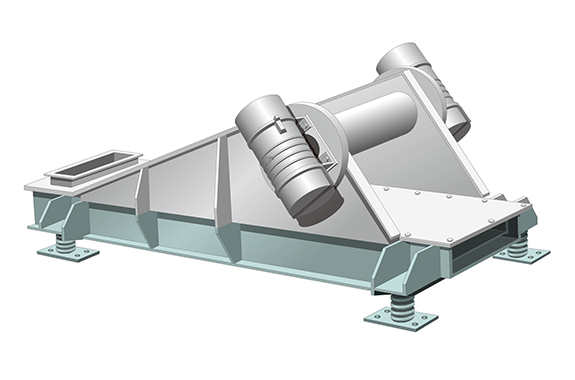

Sinfonia Above Deck Drive Type Single-deck Screen Vibrating Equipment

Manufacturer: Sinfonia Technology co., LTD, Ltd.
Model: Above Deck Drive Type Single-deck Screen

Specifications

Standard Specifications

Model	Effective screening area (m²)	Trough size width x length (mm)	Rotary vibrator type (2 sets)	Rotary vibrating motor output (kW×number of units)	Vibration per min. (50/60Hz.)	Gross weight (kg)	Applicable controller
*RVS-450-1.2	0.33	450×1200	RV-24D	0.2×2	approx 1450/1710	180	ORV-24×2R
*RVS-600-1.2	0.45	600×1200	RV-24D	0.4×2	approx 1450/1710	260	ORV-44×2R
*RVS-750-1.5	0.78	750×1500	RV-74D	0.75×2	approx 1450/1710	400	ORV-74×2R
*RVS-900-1.8	1.16	900×1800	RV-158B	1.5×2	approx 720/850	850	ORV-158-2R
*RVS-900-2.4	1.68	900×2400	RV-158B	1.5×2	approx 720/850	1100	ORV-158-2R
RVS-1200-2.4	2.28	1200×2400	RV-228B	2.2×2	approx 720/850	1450	ORV-228-2R
RVS-1200-3	2.96	1200×3000	RV-378B	3.7×2	approx 720/850	1650	ORV-378-2R
RVS-1500-3	3.74	1500×3000	RV-378B	3.7×2	approx 720/850	2300	ORV-378-2R
RVS-1500-3.6	4.46	1500×3600	RV-558B	5.5×2	approx 720/850	2500	ORV-558-2R
RVS-1500-4.8	6.2	1500×4800	RV-558B	5.5×2	approx 720/850	3800	ORV-558-2R
RVS-1800-4.8	7.48	1800×4800	RV-758B	7.5×2	approx 720/850	4850	ORV-758-2R

1. Asterisked (*) models are also available with flameproof type explosion-protection (d2G4) upon request.
2. Double or triple-deck models are also available upon request.

Outer Dimensions

Dimension Table
Unit: mm

Model	A	B	C	D	E	F	G	H
RVS-450-1.2	450	1200	250	1080	600	780	220	780
RVS-600-1.2	600	1200	300	1240	700	780	220	1000
RVS-750-1.5	750	1500	300	1480	830	1050	250	1100
RVS-900-1.8	900	1800	380	1760	1000	1350	220	1250
RVS-900-2.4	900	2400	380	1760	1110	1800	320	1250
RVS-1200-2.4	1200	2400	380	2180	1220	1800	320	1600
RVS-1200-3	1200	3000	380	2250	1270	2300	350	1600
RVS-1500-3	1500	3000	430	2550	1360	2300	300	1900
RVS-1500-3.6	1500	3600	430	2900	1400	2700	400	1900
RVS-1500-4.8	1500	4800	430	2900	1580	4000	400	2000
RVS-1800-4.8	1800	4800	480	3300	1600	4000	400	2300
