Manufacturer: Sinfonia Technology co., Ltd.

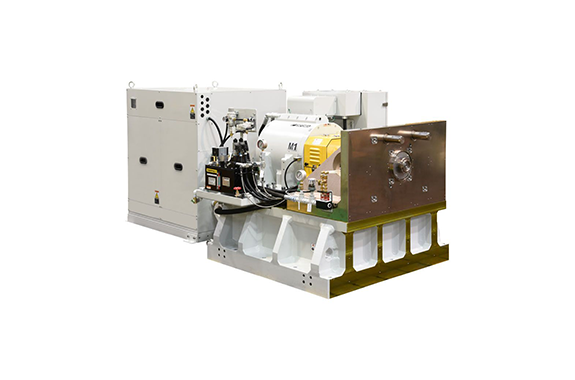

Model: High Speed Dynamometer

Features

High-precision control
0-speed control
0-speed operation by electric control is possible.
Wide range control
Control is possible from 0rpm to very low speed to maximum rpm.
High-precision speed control
Speed accuracy: ±0.02% FS
Angle control function
Capable of stopping at any angular position with ±0.5° accuracy.

25,000r/min series

Rated Output	300kW
Basic/Maximum Rotational Speed	5,730/25,000r/min
Rating Torque	500Nm
Overload Capacity	800Nm (1minute 10%ED)
