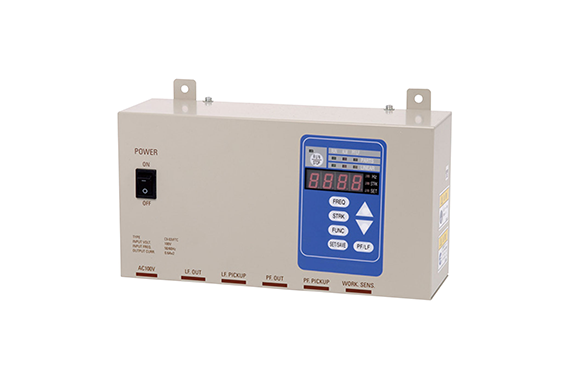

Sinfonia C9 Series Parts Feeders

Manufacturer: Sinfonia Technology co., LTD, Ltd.
Model: C9 Series

Features

This advanced digital controller optimizes high-frequency mini parts feeders for electronic chips and micro-sized components. Auto-tuning eliminates manual frequency adjustments, while digital settings and displays ensure easy operation and maximum performance.

Dimensions

C9-03VFTC

Unit: mm

Specifications

ModelC9-03VFTC
InputPower SouceAC100~230±10％　50/60Hz
OutputControl systemPWM system
Voltage0~95V
Vibration FrequencyFull wave: 90~180Hz High frequency: 180~360Hz
Max. current0.6A
Additional
features		Auto-tuning modeAutomatically senses particular vibration frequencies of parts feeder or linear feeder and controls drive at that frequency
Constant amplitude modeDigital setting for amplitude
Amplitude controlled to be uniform by means of amplitude sensor
Speed switchingAmplitude adjustable with outer signal
(max. 4settings)
Start/Stop controlStart/stop control by external signal
Overflow controlSensor allows parts feeder overflow control
On/off delay: Variable, 0.2~60 secs
Sensor power sourceDC12V, Ma. 80mA for 3phase socket plug
Output signalOutput signal synchronized to operation of parts feeder
Soft startVariable, 0.2~0.4 secs
OthersNoise tolerant voltageAbove 1,000V
Ambient temperature0~40℃
Ambient humidity10~90% (no condensation)
Case colorGray (Japan paint manufacturers association: S2-1006)
Weight1.6kg
Our compatible Parts feedersHME-08C, HME-14, ME-08C, ME-14C, HSE-14
Our compatible Linear feedersLFB-02,04, HLFB-02,04C, LF-02,04
