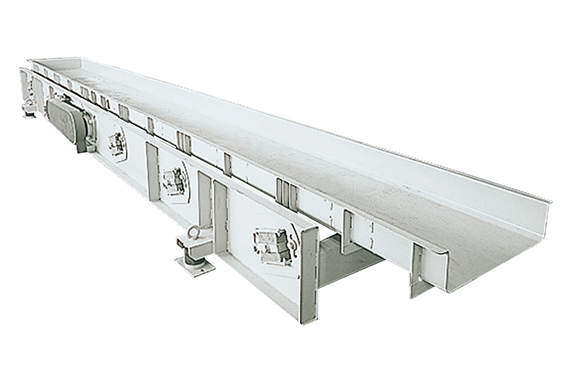

Rubber spring conveyors feature a low-profile design with adjustable vibration angles to suit different materials. A motor-driven unbalanced weight generates circular vibration, which resonating rubber springs amplify to ensure stable, uniform material conveyance. 1. Adjustable Vibration Angle Operators can easily adjust the rubber spring angle to optimize vibration for different materials. 2. Compact Size, High Capacity With a maximum frequency of 17.5 Hz and amplitude of 12 mm, the HRC model doubles the conveying capacity of conventional conveyors. 3. Easy Picking Operations Adjustable vibration amplitude and conveying speed minimize material movement and reduce eye fatigue. 4. Low-Profile Design Specially designed rubber springs connect the lightweight steel frame to the trough, reducing overall height. 5. Quiet Operation Vibration resonators enhance conveying efficiency, while vibration-absorbing springs minimize noise and floor vibration. 6. Easy Maintenance Externally mounted springs and bearings simplify inspection, maintenance, and replacement. 7. Flexible Conveying Speed A special control mechanism enables easy vibration frequency adjustment for low- and high-speed conveyance.
Structural diagram
Specifications
Standard Specifications
Model
Capacity (T/Hr)
Vibration per min (Hz)
Trough length (m)
3
4
5
6
HRC 200
10
15.8~17.5
Motor (kW)
0.75
0.75
1.5
1.5
Gross weight (kg)
300
400
500
600
HRC 300
15
15.8~17.5
Motor (kW)
0.75
1.5
1.5
1.5
Gross weight (kg)
350
450
550
650
HRC 450
20
15.8~17.5
Motor (kW)
1.5
1.5
1.5
2.2
Gross weight (kg)
450
550
650
850
HRC 600
30
15.8~17.5
Motor (kW)
1.5
1.5
2.2
2.2
Gross weight (kg)
600
700
900
1050
HRC 750
40
15.8~17.5
Motor (kW)
2.2
2.2
3.7
3.7
Gross weight (kg)
700
900
1100
1350
HRC 900
50
15.8~17.5
Motor (kW)
2.2
3.7
3.7
3.7
Gross weight (kg)
900
1100
1300
1500
1. Standard trough is open, without cover or liner. 2. Capacity is for conveying granulated sugar (apparent specific gravity 0.8, moisture content 0.05%) in a horizontal trough. 3. Motor capacity and overall weight may vary depending on type of material conveyed, and use of cover or liner.
