SINFONIA TECHNOLOGY CO., LTD.
Sinfonia Controller Vibrating Equipment
Manufacturer: Sinfonia Technology co., LTD, Ltd.
Model: C4-5B / C10 Series
Features
Our manufactures a wide range of controllers that help you get the most out of your vibrating feeders, linear feeders, vibrators, packers, and other electromagnetic equipment. In addition to our versatile C4-5B standard controller, we offer a fixed-amplitude controller that ensures a stable vibration amplitude (unaffected by changes in voltage or load), as well as the VF Series regulators that permit you to set optimum vibration conditions with the simple turn of a dial. Choose the one that best suits your needs — they’re all compact and easy to operate.

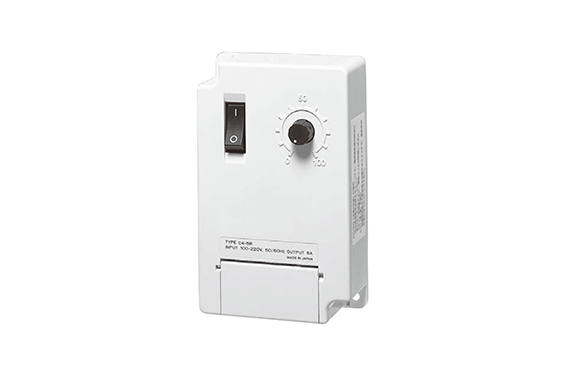

Standard Controller C4-5B
This versatile controller can be used with a wide variety of equipment. The front dial permits free adjustment of vibrations to ensure optimum performance for the application at hand.
Standard Specifications
Standard Specifications and Application Table
| Model | C4-5B | ||
|---|---|---|---|
| Power source | 100/110V 200V/220V 50/60Hz (Shared） | ||
| Output | DC5A (full wave and half wave) | ||
| Weight | 0.2kg | ||
| Applicable equipment | Vibrators | Packers | Previous controller models |
| V-2B V-4C V-10A | – | C4-5B (full wave) AC side | |
| V-20B V-30C VG-60 VG-80 | VP-30C VGP-60 VGP-80 | C4-5B (half wave) RC side | |
Standard color: Munsell 5Y7/ 1.
Plastic case is not fully enclosed; avoid use in dusty areas.
Install the controller at a dust-free area to avoid functional disorder.
Install the controller at a vibration-free area.
Outer Dimensions

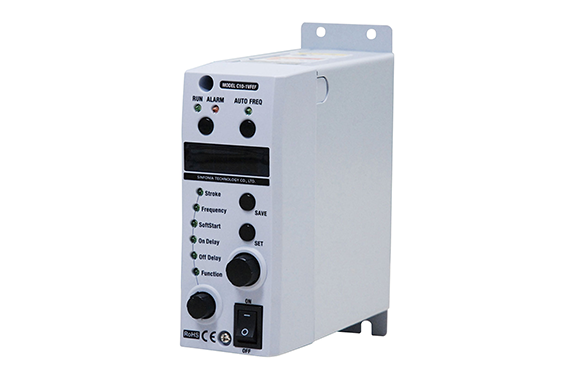

C10 series Variable-Frequency Digital Controller
Easy tuning without the need for plate spring adjustment. CE Marking conformed product
*Required to be installed inside the control box treated with Noise filter and IP4X to make product comply to CE Marking.
Specifications
Standard Specifications
| Model | C10-1VCF | C10-3VF | |
|---|---|---|---|
| Input Power Source | AC200~230V±10%, AC100~120V±10% 50/60Hz | ||
| Output | Control system | PWM system | |
| Voltage | 0~190V（for AC 200V input） 0~95V（for AC 100V input） Optional unit C10-TR allows | ||
| Vibration frequency | Half wave: 45~90Hz | ||
| Max. current | 1A | 3A | |
| Operating Modes | Constant voltage mode | Frequency, output voltage set manually | |
| Additional features | Speed selector | Selection of up to 4 amplitude settings by means of external signal *A connector is included for C10-1VCF | |
| Start/stop control | Start/Stop control by external signal | ||
| Output signal | Output signal synchronized to parts feeder operation | ||
| Soft start | Start-up time 0.2~4.0sec | ||
| Noise tolerant voltage | Above 1000V | ||
| Ambient temperature | 0~40ﾟC | ||
| Ambient humidity | 10~90％ (no condensation) | ||
| Gross weight (kg) | 0.8 | ||
| Loss | 15W（for AC200/220V input） | ||
| Applicable feeder type | Small vibrating feeder CF series (CF-1,CF-2,CF-3) Water resistant electro magnetic feeder WCF series (WCF-2A,WCF-3) | LF-30, LF-40, CF-4, WCF-3 | |
| Option unit | Connectable to C10-TR | ||
Outer Dimensions
Unit: mm
