SINFONIA TECHNOLOGY CO., LTD.

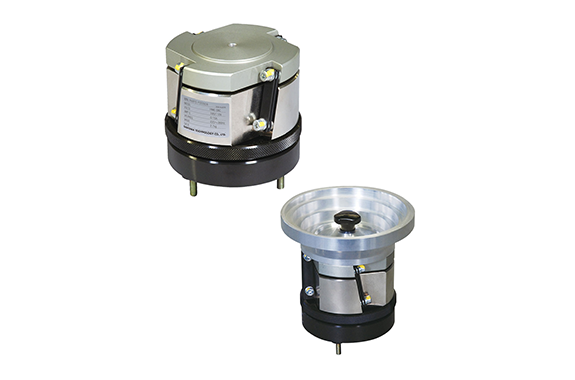

Sinfonia HME/HSE Series Parts Feeders
Manufacturer: Sinfonia Technology co., LTD, Ltd.
Model: HME/HSE Series
Features
This mini parts feeder is able to be operated with high frequency by using exclusive use controller. Realizing precise positioning detecting and sorting by sensing slight gap of shape and weight. This is suitable for high speed processing of electronic parts which is continuously becoming smaller and smaller.
Dimensions
HME-08C
HME-14C
HME/HSE Structure
HME/HSE Structure
Parts Feeder Specifications
| Model | Rated Voltage (V) | Rated Current (A) | Vibration Frequency (Hz) | Weight (kg) | Loaded Weight (kg) | Max. bowl diameter (mm) | Compatible standard controller |
|---|---|---|---|---|---|---|---|
| HME-08C | 100/110 | 0.20 | 220~360 | 2.5 | 0.6 | φ140 | C10-1VF C10-1VFEF C9-03VFTC |
| HME-14 | 0.50 | 7.8 | 2.0 | φ230 | |||
| HSE-14 | 9.3 |
