SINFONIA TECHNOLOGY CO., LTD.

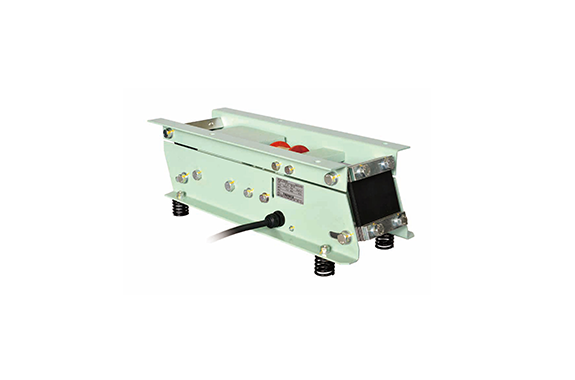

Sinfonia LF Series Linear Feeders Vibrating Equipment
Manufacturer: Sinfonia Technology co., LTD, Ltd.
Model: LF Series Linear Feeders
Specifications
LF Standard Specifications
| Model | Voltage (V) | Frequency (Hz) | Frequency (VPM) | Current (A) | Gross weight (kg) | Appropriate Controller |
|---|---|---|---|---|---|---|
| LF-30 | 200/220 | 50/60 | 3000/3600 | 1.5 | 25 | C10-3VF |
| LF-40 | 200/220 | 50/60 | 3000/3600 | 1.6 | 33 | C10-3VF |
Controllers are sold as an optional accessory.
The standard paint color is Munsell 2.5G7/2.
LF Trough
Unit: mm
| Appropriate linear feeder | Maximum length | Maximum width | Maximum Weight (kg) |
|---|---|---|---|
| LF-30 | 650 | 200 | 6 |
| LF-40 | 750 | 300 | 8 |
Figures for LF-30 and LF-40 are for a vibration amplitude of 1.0mm.
Please make your selection on the basis of or weightIf the trough is manufactured by the customer, the warranty for the
entire device is covered by the customer. Please ask us if you would like to borrow a demonstration model of the drive unit when designing your trough.
We do not sell troughs.
Outer Dimensions (Standard specifications)
Dimension Table| Model | A | B | C | C’ | D | E | F | G | H | I | J | K | L | M | N | O | P | d | Leaf-spring adjustment angle | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| α | β | |||||||||||||||||||
| LF-30 | 182.4 | 156.4 | 180.4 | – | 150.4 | 410 | 295 | – | 55 | 380 | 30 | 40 | 190 | 162 | 132 | – | 30 | 9 | 0°–20° | 10°–30° |
| LF-40 | 196.4 | 166.4 | 186.4 | – | 154.4 | 500 | 375 | – | 55 | 470 | 30 | 40 | 250 | 177 | 147 | – | 30 | 9 | 0°–20° | 10°–30° |
Example of Application
Flexible cutting out
Free cutting and feeding of minute, large, and fixed quantities. Especially effective for weighing, blending, and packing.
Electromagnetic feeder for discharging and feeding
Combination with Weighing Machine
