Sinfonia Controller for Electromagnetic Feeders Vibrating Equipment

Manufacturer: Sinfonia Technology co., LTD, Ltd.
Model: Controller for Electromagnetic Feeders

Features

The electromagnetic feeder is provided with a separate wall controller that has a power switch, flow control dial, and rectifier built in.
Floor type controllers and other models ranging from a single control type to central type control panel capable of simultaneously controlling dozens of feeders will also be available to order.
A controller with a built-in constant amplitude unit is recommended for applications in which an adhesive material must be fed because it is effective for preventing excessive amplitude due to adhesion.

Specifications

Standard Specifications

Model	Current (A)			Gross weight (kg)	Feeder model
Model	100/110V	200/220V	400/440V	Gross weight (kg)	Feeder model
C10-1VCF	1	1	–	0.8	CF-1, CF-2, CF-3
C10-3VF	3	3	–	0.8	CF-4
C6-15SC	–	15	7.5	15	FH-33BDT以下
C6-30SC	–	30	15	15	F-44BDT, F-45BDT
C6-50SC	–	50	–	20	FH-45BDT, F-55BDT
C6-50SC	–	–	25	15	FH-45BDT, F-55BDT
C6-80SC	–	80	–	35	F-66BDT, F-88BDT
C6-80SC	–	–	40	20	F-66BDT, F-88BDT

1. All the ratings are continuous.
2. C6 series has a dust-proof structure.
3. Concerning the C6 series, we will provide the constant amplitude control type, and the controller EHF type that can adjust the capability by using the external signal.
4. The structure corresponds to that of an indoor wall hanging type.
5. The painting color shown in Figure 3 is Munsell 5Y7/1 for both the inside and outside.

Outer Dimensions

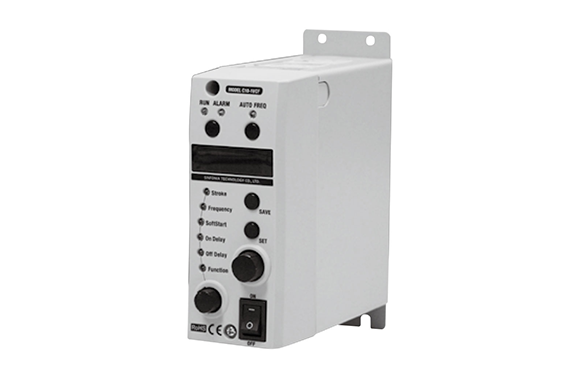

C10-1VCF

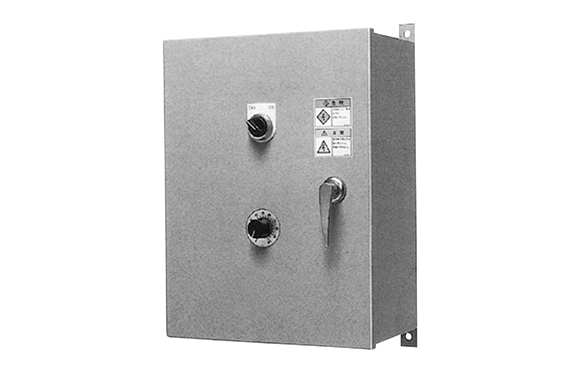

C6-□□SC

Dimension Table

Model	Outer Dimensions (mm)
Model	A	B	C	D	E	F	G	H
C10-1VCF	59	140	141	30	160	5	5	–
C10-3VF	59	140	141	30	160	5	5	–
C6-15SC	300	400	200	250	420	15	9	26
C6-30SC	300	400	200	250	420	15	9	26
C6-50SC	350	500	270	250	540	15	11	42
C6-50SC	300	400	200	250	420	15	9	26
C6-80SC	450	700	270	250	740	20	14	42
C6-80SC	350	500	270	250	540	15	11	42
