Manufacturer: Sinfonia Technology co., LTD, Ltd.

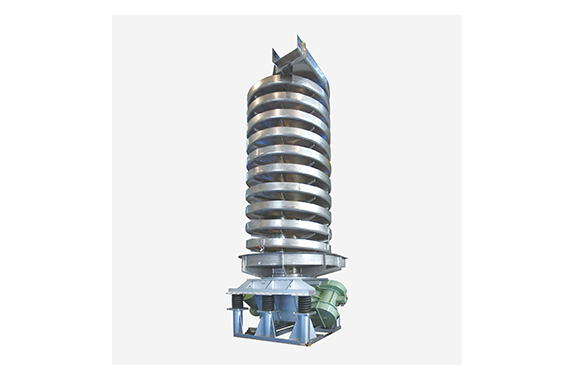

Model: Spiral Elevator RVES

Features

Spiral elevator combines a drive mechanism and a vertically aligned, spiral-shaped trough, which vibrates to drive particulate materials to the top. Suitable for all types of materials, it can also be used for downward conveyance. Simultaneous drying and cooling processes can be accommodated.
1. Minimal Installation Area
The vertical structure minimizes the installation footprint and space requirements while maximizing the usable surface area of the trough.
2. Cooling and Drying Capabilities
The conveyor supports efficient cooling and drying through natural or forced ventilation, temperature differences, extended material retention time, or reverse conveying when necessary.
3. Smooth Conveyance
The conveyor smoothly handles spherical particles and materials that are difficult to transport using bucket or belt conveyors.
4. Consistent Material Transfer
The conveyor maintains a constant material transfer speed, ensuring continuous conveyance of a fixed quantity of material.
5. Easy Flow Adjustment
Operators can easily control the material flow by adjusting the unbalanced weights of the rotary vibrator.
6. Minimal Dust Generation
The conveyor minimizes dust generation during operation, even when handling lightweight materials with low apparent specific gravity that tend to scatter easily.
7. Special Enclosed Structure
For fully enclosed, dustproof applications, operators can install a special transparent cover to monitor materials during conveyance.
8. Easy Maintenance
The compact drive mechanism simplifies maintenance, while the durable trough design minimizes wear and reduces maintenance requirements.
