SINFONIA TECHNOLOGY CO., LTD.

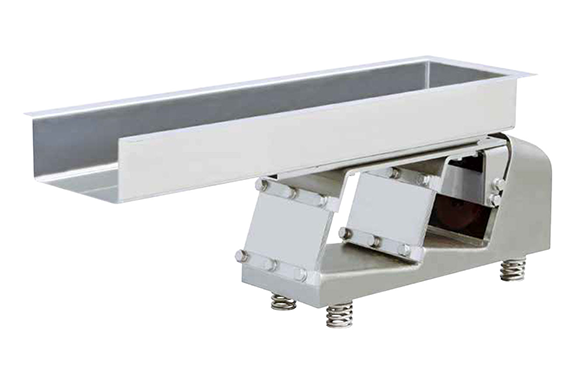

Sinfonia WCF Series Water-Resistant Electromagnetic Feeder Vibrating Equipment
Manufacturer: Sinfonia Technology co., LTD, Ltd.
Model: WCF Series
Features
Structural diagram
Drive unit

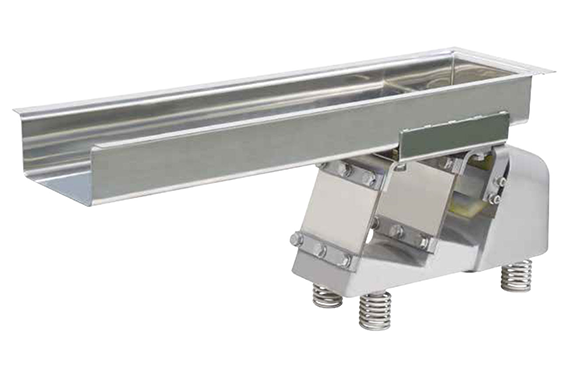

Drive unit with trough
Specifications
| Model | WCF-2A | WCF-3 |
|---|---|---|
| Cover | No cover | No cover |
| Trough weight (kg) | 2.0~4.5 | 3.0~9.0 |
| Standard trough size (mm) | 120×550×60 | 150×610×70 |
| Max stroke (mm) | 1.6 | 1.6 |
| Vibration frequency (Hz) | 50~70 C10-1VCF | 50~70 |
| Applicable controller | C10-1VCF *1 | C10-3VF*1 |
| Voltage (V) | 200*1 | 200*1 |
| Current (A) | 0.65 | 1.6 |
| Weight (Drive unit only) (kg) | 17 | 28 |
| Auxiliary cable (cross-section area) | VCT, 1.5m (0.75mm2×3core) | 2PNCT, 1.5m (1.25mm2×3core) |
- C10-TR power transformer unit is required when power source is AC100V
Dimensions
WCF-2A
With standard trough
Drive unit
WCF-3
Drive unit
Example of Application
Flexible cutting out
Free cutting and feeding of minute, large, and fixed quantities. Especially effective for weighing, blending, and packing.
Electromagnetic feeder for discharging and feeding
