Manufacturer: Sinfonia Technology co., LTD, Ltd.

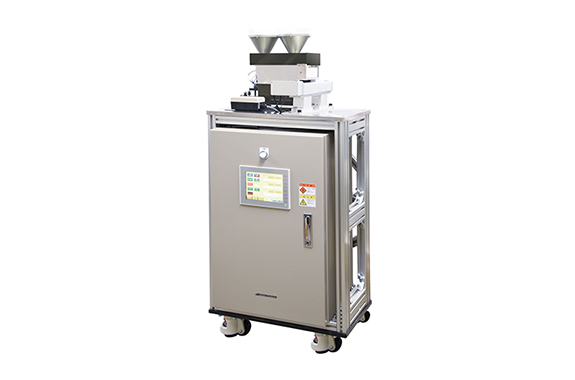

Model: Micro Fixed-Quantity Feeder

Features

Electromagnetic feeders utilize the transport phenomenon caused by electromagnetic vibration and are the most effective feeders for cutting and feeding all types of materials, from fine powders to large lumps.The F-type electromagnetic feeder comes in two configurations: the standard type, which features an electromagnetic drive at the rear bottom of the trough, and the upper-drive type, which features the drive at the front top of the trough.

Achieves significant efficiency improvements
Integrated control from the start of powder feeding to the transfer of parts after feeding reduces waiting time, etc.
Capable of continuous fixed-quantity feeding
Sliding the feeding jig enables continuous fixed-quantity feeding.
High-precision batch control
Feeding amount is measured in the feeding time to achieve a feeding amount of 0.11g ± 0.01g*.
(In case of feeding to a φ2mm dia. jig)
