SINFONIA TECHNOLOGY CO., LTD.

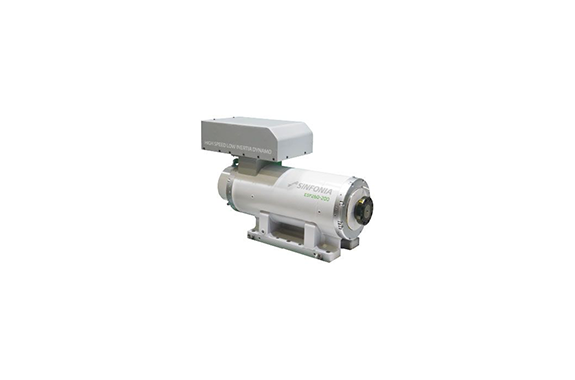

Sinfonia Ultra-Low Inertia Dynamometer Testing Systems
Manufacturer: Sinfonia Technology co., LTD, Ltd.
Model: Ultra-Low Inertia
Features
Ultra-low inertia enables simulation compatibility.
Also, the small diameter enables gearless operation for multi-axis tests.
Small capacity type
| Inertia quantity | J=0.012kgm2 (Dynamo stand-alone) |
|---|---|
| Capacity | 126kW Maximum torque: 200Nm |
Medium capacity type
| Inertia quantity | J=0.033kgm2（Dynamo stand-alone） |
|---|---|
| Capacity | 283kW Maximum torque: 450Nm |
Large capacity type
| Inertia quantity | J=0.053kgm2（Dynamo stand-alone） |
|---|---|
| Capacity | 418kW Maximum torque: 800Nm |
Smaller diameter enables direct operation (gearless)
| Low-speed, low-inertia | J=1.48kgm2 (Rotor moment of inertia equivalent to tire) |
|---|---|
| Capacity | 753kW 2,400r/min 6,000Nm |
