Japan, SUGIYASU

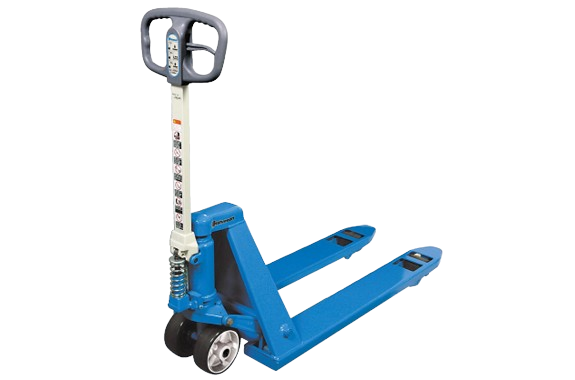

SUGIYASU BM20S Hand Pallet Truck
Product Made in Japan
Manufacturer: SUGIYASU
Model:BM20S
Feature
Specifications

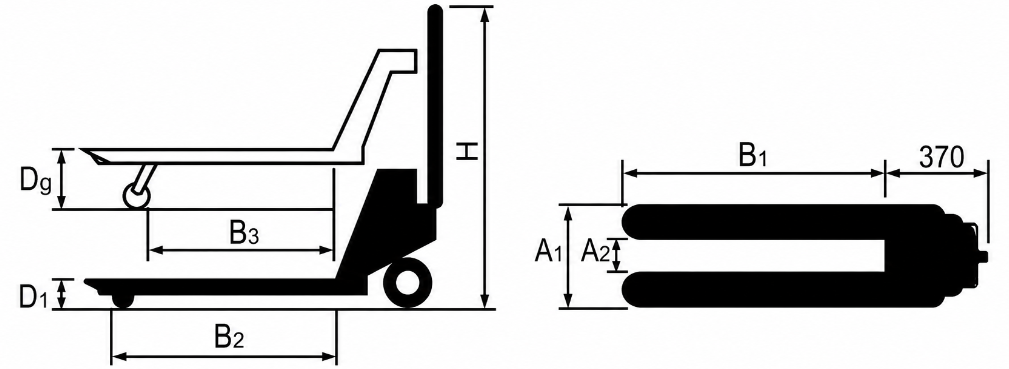

| Model | Model No. | Capacity (Kg) | Width (mm) | Length (mm) | Height (mm) | Height (mm) | Width (mm) | Length (mm) | Length (mm) | Weight (Kgs.) |
|---|---|---|---|---|---|---|---|---|---|---|
| A₁ | B₁ | D₁ | D₂ | A₂ | B₂ | B₃ | ||||
| A | BM20SS | 2,000 | 520 | 810 | 80 | 200 | 214 | 675 | 525 | 72 |
| BM20S | 520 | 980 | 80 | 200 | 214 | 845 | 695 | 75 | ||
| BM20M | 520 | 1,070 | 80 | 200 | 214 | 935 | 785 | 79 | ||
| BM20L | 520 | 1,150 | 80 | 200 | 214 | 1,015 | 865 | 81 | ||
| BM20C | 685 | 1,070 | 80 | 200 | 379 | 935 | 785 | 85 | ||
| BM20LL | 685 | 1,220 | 80 | 200 | 379 | 1085 | 935 | 88 | ||
| B | BM20-48SS | 2,000 | 480 | 810 | 80 | 200 | 174 | 675 | 525 | 71 |
| BM20-48S | 480 | 980 | 80 | 200 | 174 | 845 | 695 | 75 | ||
| BM20-60M | 600 | 1,070 | 80 | 200 | 294 | 935 | 785 | 82 | ||
| BM20-60LL | 600 | 1,220 | 80 | 200 | 294 | 1,085 | 935 | 85 | ||
| C | BM25SS | 2,500 | 520 | 810 | 80 | 200 | 214 | 675 | 525 | 86 |
| BM25S | 520 | 980 | 80 | 200 | 214 | 845 | 695 | 88 | ||
| BM25M | 520 | 1,070 | 80 | 200 | 214 | 935 | 785 | 89 | ||
| BM25L | 520 | 1,150 | 80 | 200 | 214 | 1,015 | 865 | 90 | ||
| BM25C | 685 | 1,070 | 80 | 200 | 379 | 935 | 785 | 97 | ||
| BM25F | 685 | 1,150 | 80 | 200 | 379 | 1,015 | 865 | 98 | ||
| BM25LL | 685 | 1,220 | 80 | 200 | 379 | 1,085 | 935 | 99 | ||
| D | BM15SS-L65 | 1,500 | 520 | 810 | 65 | 165 | 214 | 675 | 545 | 68 |
| BM15M-L65 | 520 | 1,070 | 65 | 165 | 214 | 935 | 805 | 75 | ||
| BM15LL-L65 | 685 | 1,220 | 65 | 165 | 379 | 1,085 | 955 | 83 | ||
| BM25M-L65 | 520 | 1,070 | 65 | 165 | 214 | 935 | 805 | 85 | ||
| BM25LL-L65 | 685 | 1,220 | 65 | 165 | 379 | 1,085 | 955 | 95 | ||
| E | BM30SS | 3,000 | 520 | 810 | 82.5 | 202.5 | 214 | 735 | 480 | 100 |
| BM30S | 520 | 980 | 82.5 | 202.5 | 214 | 905 | 650 | 103 | ||
| BM30M | 520 | 1,070 | 82.5 | 202.5 | 214 | 995 | 740 | 105 | ||
| BM30L | 520 | 1,150 | 82.5 | 202.5 | 214 | 1,075 | 820 | 107 | ||
| BM30D | 685 | 810 | 82.5 | 202.5 | 379 | 735 | 480 | 105 | ||
| BM30LL | 685 | 1,220 | 82.5 | 202.5 | 379 | 1,145 | 890 | 110 | ||
| F | BM12SS-L50 | 1,200 | 520 | 810 | 50 | 140 | 214 | 665 | 555 | 68 |
| BM12M-L50 | 520 | 1,070 | 50 | 140 | 214 | 1070 | 925 | 75 | ||
| BM12LL-L50 | 685 | 1,220 | 50 | 140 | 379 | 1075 | 965 | 83 | ||
| G | BM10SS-L40 | 1,000 | 520 | 810 | 40 | 115 | 214 | 685 | 535 | 64 |
| BM10S-L40 | 520 | 980 | 40 | 115 | 214 | 855 | 705 | 67 | ||
| BM10M-L40 | 520 | 1,070 | 40 | 115 | 214 | 945 | 795 | 71 | ||
| BM10C-L40 | 685 | 1,070 | 40 | 115 | 379 | 945 | 795 | 71 |
