Japan, SUGIYASU
SUGIYASU LV50 Skid Lifter
Product Made in Japan
Manufacturer: SUGIYASU
Model:LV50
Feature
- The foot pump is a safe and compact collapsible type (same for LV50/LV100)
- Easy Lowering by pulling lever Deadman design for safety (All Models)
- The original hydraulic pump and cylinder are extremely reliable

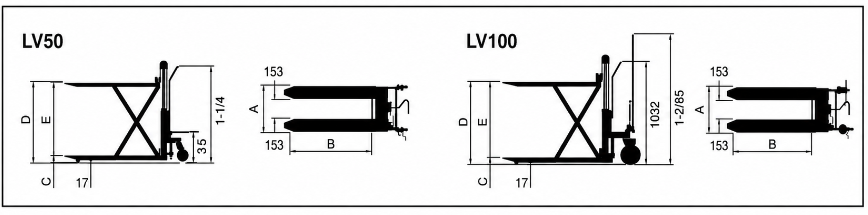

Specifications
| Model | Maximum Capacity (kg) | Fork (mm) | Total Width | Total Length | Pump Operation Count (Number of Times) | Wheels (mm) | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External Width | Length | Minimum Height | Maximum Height | Lifting Height | Urethane | |||||||
| A | B | C | D | E | (mm) | (mm) | Front Wheel Diameter | Rear Wheel Diameter | (kg) | |||
| LV50NSS | 500 | 460 | 810 | 83 | 613 | 530 | 543 | 1,302 | 28 | 70 | 150 | 87 |
| LV50SS | 520 | 603 | 88 | |||||||||
| LV50N | 460 | 1,080 | 833 | 750 | 543 | 1,573 | 39 | 100 | ||||
| LV50 | 520 | 603 | 101 | |||||||||
| LV50W | 685 | 768 | 106 | |||||||||
| LV100 | 1,000 | 520 | 1,080 | 833 | 750 | 728 | 1,685 | 71 | 200 | 136 | ||
| LV100W | 685 | 893 | 160 | |||||||||
