(1) series
IRDM : IRD master module
(2) network function
CCL : CC-Link Ver.2
(3) special
specification code
blank: standard
others: customer’s special option
Suntest
Suntest IRDM-CCL Master Modules CC-Link Ver.2 Network Function
Manufacturer: Suntest Co.,Ltd
Model: IRDM-CCL
This is a master module of IRD series. It is possible to build up CC-Link system with using some slave modules for one IRDM-CCL.
IRDM-CCL is a remote device for CC-Link Master Station and all data in IRD system are transferred to the Master Station.
Model
Calculation of maximum available modules
Condition1
| Number of master module | = 1 |
| Number of slave modules | ≤ 9 |
| Occupied memory block | ≤ 64 |
Condition2 (additional condition by the type of master module)
| Total input byte | ≤ 256 |
| Total output byte | ≤ 256 |
Occupied memory block and input /output bytes
| Module series | Memory block | Input byte | Output byte |
|---|---|---|---|
| IRDM-CCL | 3 | 24 | 24 |
Specifications
| Items | Specifications | |
|---|---|---|
| CC-Link | device type | remote device station (CC-Link Ver.2) |
| cable | CC-Link Ver1.10 cable | |
| transmission speed | 156kbps/ 625kbps/ 2.5Mbps/ 5Mbps/10Mbps | |
| number of occupied stations | 1~4 occupied station (Internally calculated in IRDM automatically) | |
| extended cyclic setting | 1 time, 4 times, 8 times (Internally calculated in IRDM automatically) | |
| Power supply | rating | DC24V(±10%) |
| consumption current | ≤110mA (only this module) Total current value in the system should be summed up each | |
| External alarm output | rating | photo relay output (ON when abnormality detected) rating 24V, Max.32V (0.05A) ON:Max. 1.5Ω |
| External clear input | rating | bipolar optocoupler input rating24V (18~32V) |

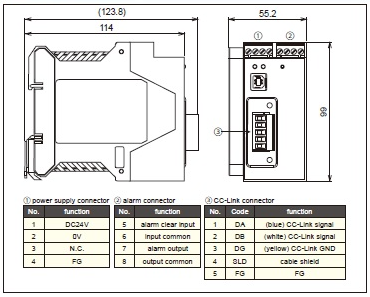

Dimensions
