Manufacturer: Suntest Co.,Ltd
Model: IRDM-CFN
This is a master module of IRD series. It is possible to build up CC-Link IE Field system with using some slave modules for one IRDM-CFN.
All data in IRD system are communicated with PC (USB) or the host system (CC-Link IE Field).
IRDM (1) -CFN (2) – (3)
(1) series
IRDM : IRD master module
(2) network function
CFN : CC-Link IE Field
(3) special specification code
| blank | : standard |
| others | : customer’s special option |
| Number of master module | = 1 |
| Number of slave modules | ≤ 9 |
| Occupied memory block | ≤ 64 |
Condition 2 (additional condition by the type of master module)
| Total input byte | ≤ 256 |
| Total output byte | ≤ 256 |
Occupied memory block and input /output bytes
| Module series | Memory block | Input byte | Output byte |
|---|---|---|---|
| IRDM-CFN | 0 | 0 | 0 |
| Items | Specifications | |
|---|---|---|
| CC-Link IE Field | device type | intelligent device station |
| cable | ≥category 5e (STP straight cable with double shield) IEEE802.3(1000BASE -T) 、ANSI/TIA/EIA -568 -B(Category 5e) | |
| transmission speed | 1000BASE-T | |

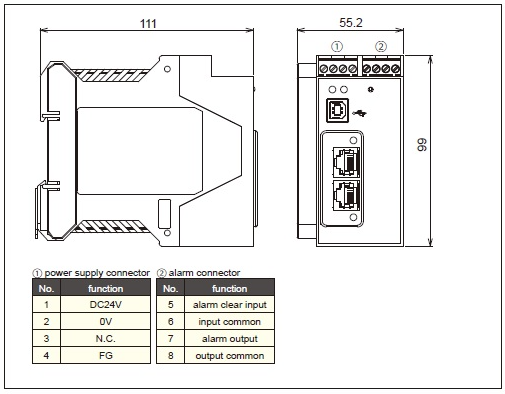

| connector | ISO8877(RJ45) | |
| Power supply | rating | DC24V(±10%) |
| consumption current | ≤110mA (olny this module) Total current value in the system should be summed up each | |
| External alarm output | rating | photo relay output (ON when abnormality detected) rating 24V, Max. 32V (0.05A) ON:Max. 1.5Ω |
| External clear input | rating | bipolar optocoupler input rating 24V (18~32V) alarm clear input 3kΩ |
