Manufacturer: Suntest Co.,Ltd
Model: IRDM-ECT
This is a master module of IRD series. It is possible to build up EtherCAT system with using some slave modules for one IRDM-ECT.
IRDM-ECT is a slave for EtherCAT Master Station and all data in IRD system are transferred to the Master Station.
IRDM (1) -ECT (2) – (3)
(1) series
IRDM : IRD master module
(2) network function
ECT : EtherCAT
(3) special specification code
| blank | : standard |
| others | : customer’s special option |
| Number of master module | = 1 |
| Number of slave modules | ≤ 9 |
| Occupied memory block | ≤ 64 |
Condition 2 (additional condition by the type of master module)
| Total input byte | ≤ 256 |
| Total output byte | ≤ 256 |
Occupied memory block and input /output bytes

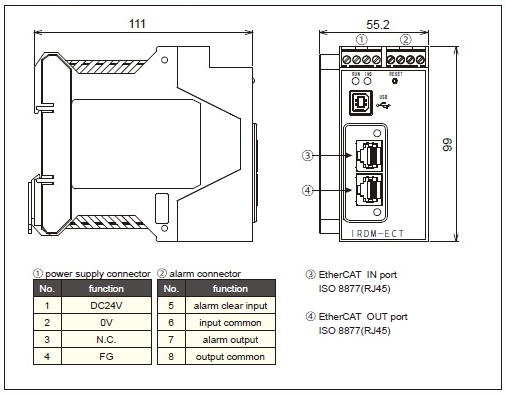

| Module series | Memory block | Input byte | Output byte |
|---|---|---|---|
| IRDM-ECT | 0 | 0 | 0 |
| Items | Specifications | |
|---|---|---|
| EtherCAT | device type | EtherCAT slave |
| cable | ≥category 5 (STP straight cable) | |
| transmission speed | 100BASE-TX auto negotiation / fixed setting | |
| connector | ISO8877 (RJ45) | |
| Power supply | rating | DC24V (±10%) |
| consumption current | ≤110mA (olny this module) Total current value in the system should be summed up each | |
| External alarm output | rating | photo relay output (ON when abnormality detected) rating 24V, Max. 32V (0.05A) ON:Max. 1.5Ω |
| External clear input | rating | bipolar optocoupler input rating 24V (18~32V) alarm clear input 3kΩ |
