Manufacturer: Suntest Co.,Ltd
Model: IRDS-WG

This is a slave module for function generation of IRD series.

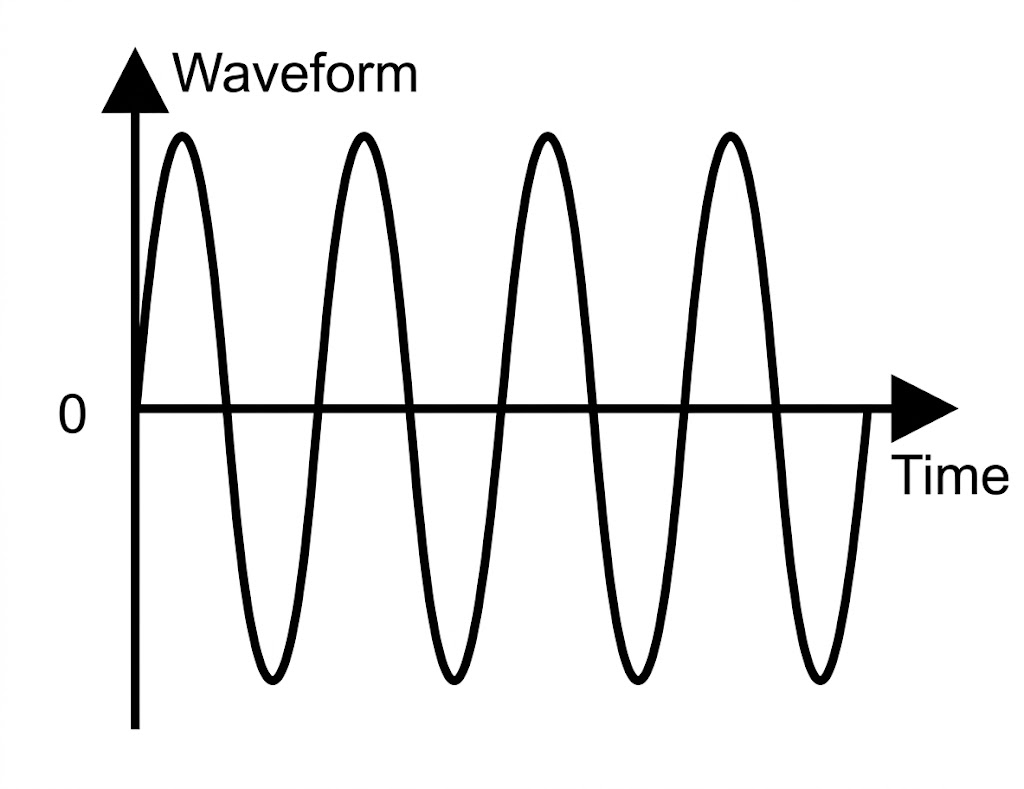

It generates several kinds of wave signals like sine, cosine, triangle, square and saw wave.
One or Four channel type is available.

［Functions and Features］

• IRDS-WG-1:one channel type
• IRDS-WG-4:four channels type
• Possible to have analogue or digital output from other slave modules in the system. (IRDS-AIO, AO4 and DO)
• The data is transferred to the industrial network through IRD master module. (CC-Link, EtherNet/IP, PROFIBUS)
• Possible to set or change the inside parameters through IRD master module over host industrial network or the dedicated Windows software (IRD Manager).
• Possible to generate any kinds of wave signals as above in IRDS-WG inside through IRD master module over host industrial network or the dedicated software (IRD Manager), or to generate wave signals through SD card (CSV file).
• Possible to make max. 12,000 points wave if you save the dedicated memory card.
• Function generator : sine, cosine, triangle, square or saw wave.
• Possible to add the slope of the amplitude of starting / stopping to the external wave which is acquired.
• Possible to combine two signals for the same wave.
• SYNC output : Possible to count up the wave which is synchronized with generated wave.

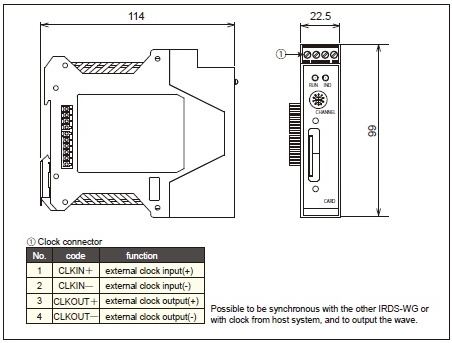

• External clock input / output : Possible to synchronize some IRDS-WG or to be synchronized with the external clock.
• RoHS compliant
