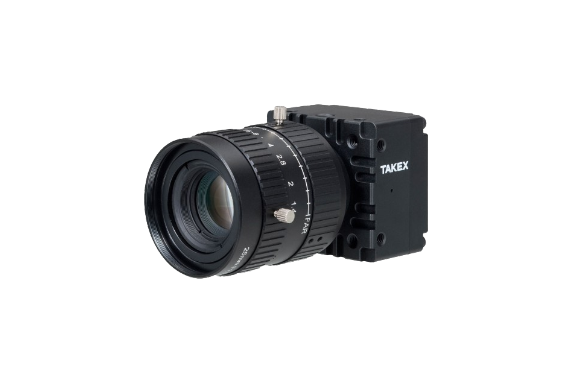

Takenaka Optonic FCM12MHPL Camera Link Compliant Progressive Scan Camera

Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: FCM12MHPL

Feature

Either normal Camera Link board or PoCL (Power over Camera Link) board can be connected.
The global shutter sensor provides the images without distortion even in shooting of fast-moving objects.
The Full Configuration（with two Camera Link cables）for the high-speed operation, or the Base Configuration (with single Camera Link cable) for the low-speed operation, can be selected depending on the application.
Achieves faster speed operation limiting the number of read-out line.

Image sensor	Progressive scanning,Global shutter, Monochrome CMOS Unit cell size : 3.45µm(H)×3.45µm(V)
Image sensor	1.1inch size
Number of pixels	12.36million pixels 4,112(H)×3,008(V)
Readout modes	12fps Horizontal scanning frequency f_h=37.1kHz Vertical scanning frequency f_v=12.1Hz Driving clock frequency f_clk=84MHz Digital output Gradation 8bit/12bit (Base Config.)
Readout modes	60fps Horizontal scanning frequency f_h=186.1kHz Vertical scanning frequency f_v=60.8Hz Driving clock frequency f_clk=80MHz Digital output Gradation 8bit (Deca Config.)
Video output	8bitCamera Link format compliant Deca (10TAP)/ Full /Medium/Base Configuration)
Video output	12bitCamera Link format compliant Medium/Base Configuration
Electronic shutter	1/52,000 sec. ～
Asynchronous shutter	Pre-settable fixed exposure
Scanning mode	Full screen / Partial (Specified lines readout) / Binning
Lens mount	C mount (Fixed flange back)
Power supply	Camera connector（6Pin)/PoCL：DC12V±10% 250mA or less
Storage tempurature range	0℃～40℃ (with no condensation）

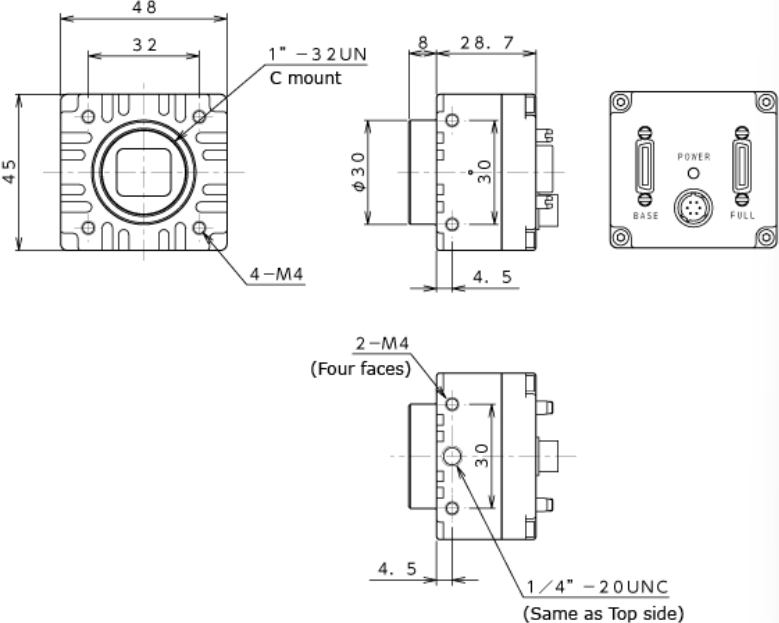

External dimension	48(W)×45(H)×37(D) (size except the salient)
Weight	110g
