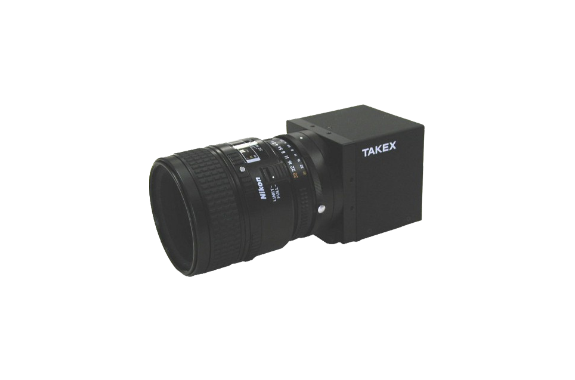

Takenaka Optonic TL-4096UCL / TL-2048UCL Camera Link Compliant Digital Line Scan Camera
Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: TL-4096UCL / TL-2048UCL
Feature
- Restriction on the encoder signal specs is significantly relaxed as the asynchronous shutter function is equipped. Hence, clear images can be obtained even when the line speed of the object is not stable.
- Despite the periodic fluctuation of input pulse of the external encoder, stable images can be obtained thanks to exposure control function.
- Reduction in size and weight has been realized by adopting original circuit and mechanism design.
- Possible to get crisp images as output characteristics of ODD and EVEN pixels hardly vary at all.
- The equipment operates with a single DC12V power source.
Specifications
| TL-2048UCL | TL-4096UCL | |
| Number of pixels | 2048 | 4096 |
| Pixel size | 10µm×10µm | |
| Photo array length | 20.48mm | 40.96mm |
| Data rate | 50MHz | |
| Scan rate | 23.8kHz（Max） | 11.9kHz（Max） |
| Video output | Camera Link (Base configuration) compliant 2×8/10 bit: | |
| Sensitivity | 50 V/lx.sec (Gain setting1) | |
| Dynamic range | 5,500 (Standard, on the element) | |
| Saturation exposure | 1.3 lx.sec | |
| Output ununiformity | 3 % standard at 50 % of saturation output (on the element) | |
| Power supply | DC12V 550mA | DC12V 650mA |
| Operation temperature range | 0 to +40℃ | |
| Operation humidity range | 85 % or less | |
| Storage temperature range | -10℃ to +65℃ | |
| Lens mount | F Mount | |
| External dimension | 64(W)×64(H)×80.3(D) | |
| Weight | 360 g or less | |

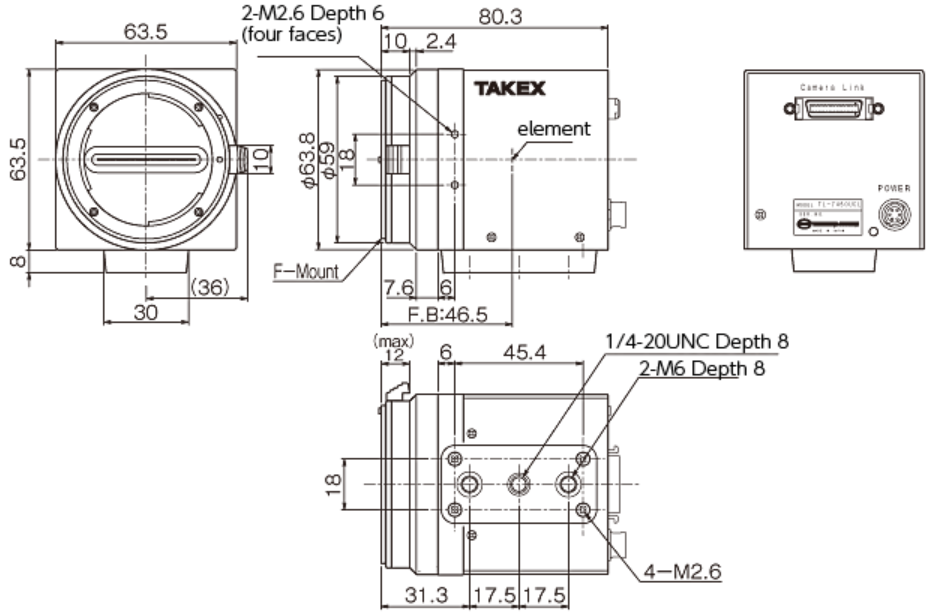

Dimensional Outline Drawing
