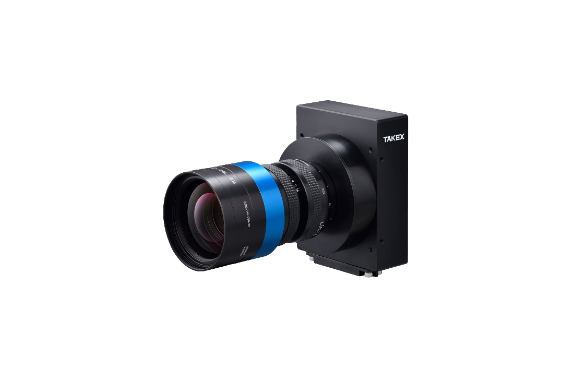

Takenaka Optonic TL-16K5FCL CMOS Sensor / Camera Link Compliant Digital Line Scan Camera
Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: TL-16K5FCL
Feature
- The large 5µm square pixel size sensor enables to obtain high-sensitivity and high-definition images.
- Equipped with Global shutter function and FFC function.
- Small and lightweight product with unique design
- Doubles the sensitivity by using 2 line TDI mode.
Specifications
| Type | TL-16K5FCL |
|---|---|
| Image sensor | Monochrome Global shutter CMOS |
| Number of pixels | 16,384 × 2Line Line pitch 0µm |
| Pixel size | 5µm×5µm |
| Photo array length | 81.92mm |
| Data rate | Full 85MHz×8Tap |
| Scan rate | 38.8 kHz |
| Line transfer pulse input | 25.8 µsec (Min) |
| Digital video output | Camera Link |
| Saturation exposure | 40ke- (typical value) |
| Flange back | 12mm |
| Power supply | +12V±0.5V (0.8A or less) |
| Lens mount | M95, P=1mm |
| Operational ambient temperature | 0℃～40℃ (with no icondensation) |
| External dimension | 102(W)×130(H)×37(D) |
| Weight | 750g or less |
