TAKENAKA OPTONIC

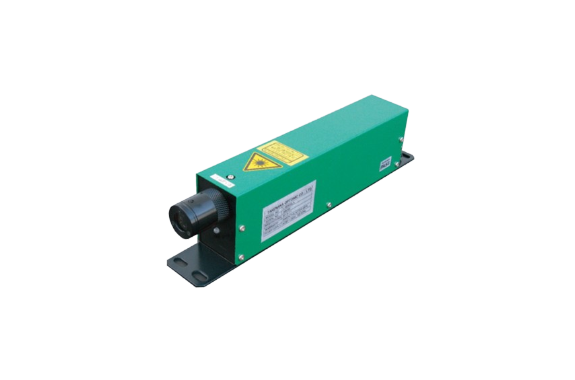

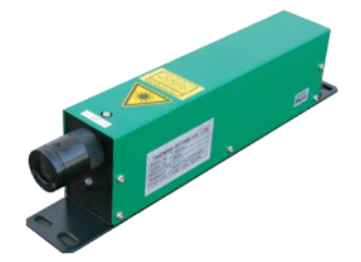

Takenaka Optonic LXD Series Long Life Lasers With Built-In Power Supply
Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: LXD Series
Feature
- Semiconductor lasers that replace the conventional He-Ne lasers.
- Povide bright, ultra-fine, and wide line lengths and a long life time of 55,000 hours or more.
- Equipped with a life pre-alarm indicators and output function. When the laser life is approaching, the red/green indicators light up alternately to notify the user.
- Built-in AC power supply with a wide voltage range and high-performance noise filter.
Specifications
| Product Name | Laser Projector | |
|---|---|---|
| Laser Color | Red | Green |
| Model | LXD405LA | LXD405LAG |
| Work Distance (W.D.) | 100 mm to 5,000 mm | |
| Projection Pattern and Dimensions | Line pattern Length: 1,300 mm Width: 0.5 mm W.D.: 1,000 mm | Line pattern Length: 1,300 mm or more Width: Approx. 0.5 mm W.D.: 1,000 mm |
| Projection System | Variable lens focus type | Variable lens focus type Pattern rotation range: ±5° |
| Wave Length | 650 nm | 515 nm (510-530 nm) |
| Optical Output Power | 1 mW or less Class 2 | |
| Average Operating Life | 55,000 hours | 20,000 hours |
| Operating Voltage/Current | AC85 to 260V 10VA | AC85 to 260V 50/60Hz 10VA |
| Indicator | Power indicator (green), Life pre-alarm indicator (red/green) | |
| Connecting System | AC cord (2m) with AC plug and socket | |
| Operating Temperature | -10℃ to 50℃ (non freezing) | |
| Operating Humidity | 20 to 85%RH (non condensing) | |
| Degree of Protection | IP40 | |
| Mass | Approx. 1,200 g | |
