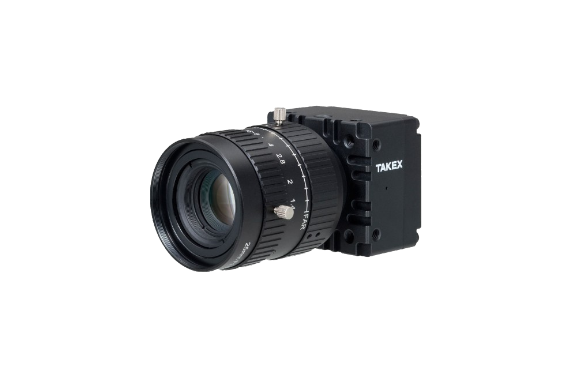

Takenaka Optonic FCM5MHPL / FCM3MHPL Camera Link Compliant Progressive Scan Camera

Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: FCM5MHPL / FCM3MHPL

Feature

Either normal Camera Link board or PoCL (Power over Camera Link) board can be connected.
Since these products are equipped with a 5 Megapixel-2/3″ (FCM5MHPL) or a 3 Megapixel-1/1.8″ (FCM3MHPL) CMOS sensor, they are suitable for replacing existing 5 Megapixel or 2 Megapixel CCD cameras.
The global shutter sensor provides the images without distortion even in shooting of fast-moving objects.
The Full Configuration（with two Camera Link cables）for the high-speed operation, or the Base Configuration (with single Camera Link cable) for the low-speed operation, can be selected depending on the application.
Achieves faster speed operation limiting the number of read-out line.

Specifications

Model	FCM5MHPL	FCM3MHPL
Image sensor	Progressive scanning,Global shutter, Monochrome CMOS Unit cell size : 3.45µm(H)×3.45µm(V)
Image sensor	2/3 inch size	1/1.8 inch size
Number of pixels	5.06 million pixels 2,464(H)×2,056(V)	3.18 million pixels 2,064(H)×1,544(V)
Readout modes	32fps Horizontal scanning frequency f_h=67.4kHz Vertical scanning frequency f_v=32.2Hz Driving clock frequency f_clk=84MHz Digital output Gradation 8bit/12bit (Base Config.)	48fps Horizontal scanning frequency f_h=76.6kHz Vertical scanning frequency f_v=48.7Hz Driving clock frequency f_clk=84MHz Digital output Gradation 8bit/12bit (Base Config.)
Readout modes	150fps Horizontal scanning frequency f_h=314.6kHz Vertical scanning frequency f_v=150.2Hz Driving clock frequency f_clk=80MHz Digital output Gradation 8bit (Deca Config.)	210fps Horizontal scanning frequency f_h=333.0kHz Vertical scanning frequency f_v=210.5Hz Driving clock frequency f_clk=80MHz Digital output Gradation 8bit (Deca Config.)
Video output	8bit Camera Link format compliant Deca (10TAP)/ Full /Medium/Base Configuration)
Video output	12bit Camera Link format compliant Medium/Base Configuration
Electronic shutter	1/59,000 sec. ～
Asynchronous shutter	Pre-settable fixed exposure
Scanning mode	Full screen / Partial (Specified lines readout) / Binning
Lens mount	C mount (Fixed flange back)
Power supply	Camera connector（6Pin)/PoCL：DC12V±10% 250mA or less
Storage tempurature range	0℃～40℃ (with no condensation）
External dimension	48(W)×45(H)×37(D) (size except the salient)
Weight	110g
