TAKENAKA OPTONIC

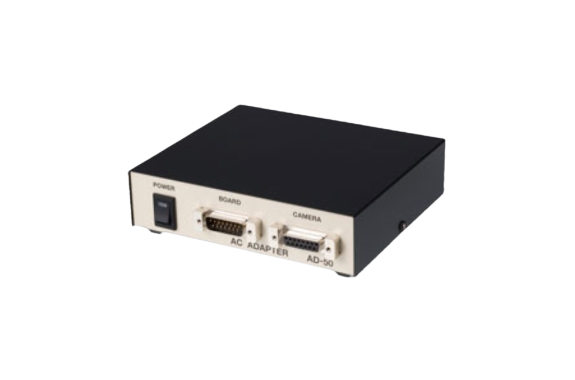

Takenaka Optonic AD-50 Power Supply Unit For Line Scan Camera
Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: AD-50
Feature
- It can easily construct the communication link (RS232C) connecting with PC and our Line scan camera (JB,F-series camera)
- Input signals:
CLOCK signal (RS-422) 20MHz max.
SYNC signal (RS-422) 4.5kHz max. - Output signals:
12V DC, 0.8A
CLOCK signal (RS422)
SYNC signal (RS-422)
Specifications
| Input | CLOCK (RS-422), Input range 20MHz max. |
|---|---|
| SYNC (RS-422), Input range 4.5kHz max. | |
| Output | 12V DC, 0.8A |
| CLOCK (RS-422) | |
| SYNC (RS-422) | |
| Supply voltage | 85 to 240V AC, 50/60Hz |
| Power consumption | 20VA or less |
| Connecting method | Metal outlet |
| Weight | 0.6 kg |
| Outside dimension | 150 (W) × 38 (H) × 130 (D) mm |

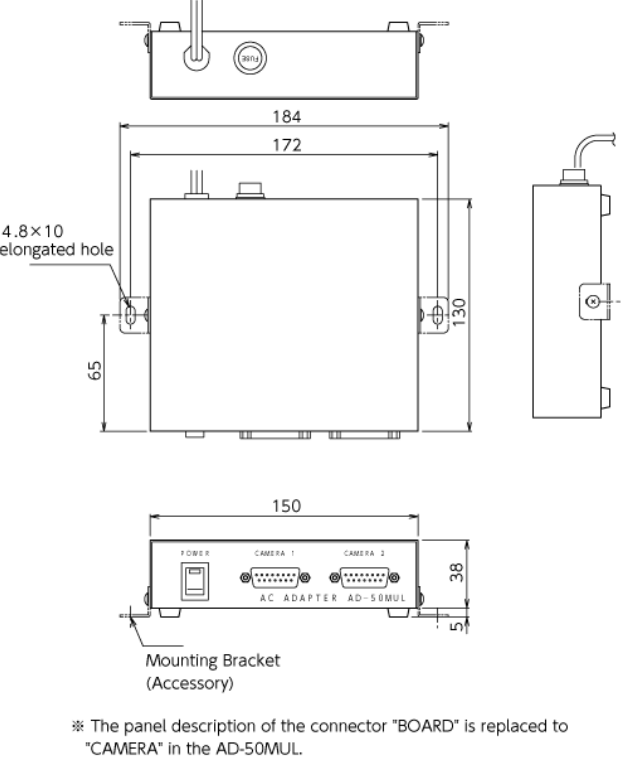

Dimensional Outline Drawing
