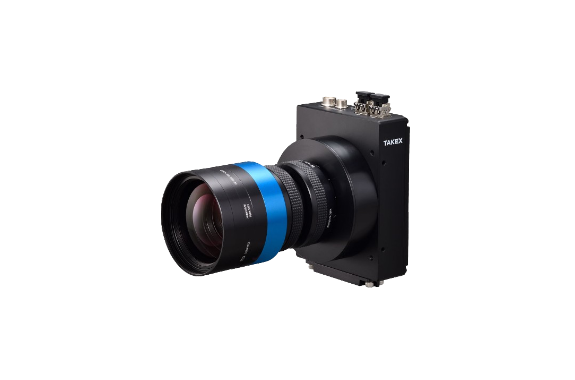

Takenaka Optonic TLC-16K5FOL 16,384 Pixel CMOS Sensor Opt-C:Link Compliant Digital Line Scan Camera
Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: TLC-16K5FOL
Feature
- The large 5µm square pixel size sensor enables to obtain high-sensitivity and high-definition images.
- Equipped with Global shutter function and FFC function.
- Small and lightweight product with unique design
- The narrow line spacing 5µm makes less susceptible to the adverse effects of imaging from oblique angles.
- The impact of noise during cable transmission is significantly reduced, because it uses optical communication.
- Wire saving
Specifications
| Type | TLC-16K5FOL |
|---|---|
| Image sensor | Color Global shutter CMOS |
| Number of pixels | 16,384 × 3Line Line pitch 5µm |
| Pixel size | 5µm×5µm |
| Photo array length | 81.92mm |
| Video rate | 6.25Gbps (2ch) |
| Data rate | Medium 85MHz×6Tap |
| Scan rate | 22.7kHz |
| Line transfer pulse input | 44.1µsec (Min) |
| Digital video output | Opt-C:Link |
| Saturation exposure | 40 ke- (typical value) |
| Flange back | 12mm |
| Power supply | +12V±0.5V (0.8A or less) |
| Lens mount | M95, P=1mm |
| Operational ambient temperature | 0℃～40℃ (with no icondensation) |
| External dimension | 102(W)×130(H)×37(D) Excluding protrusions |
| Weight | 750g or less |
