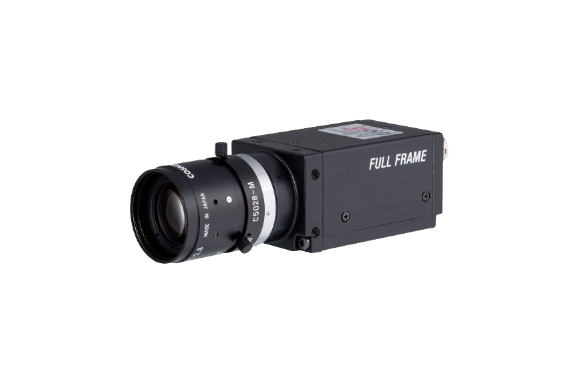

Takenaka Optonic FC1650GE GigE Vision Compliant Progressive Scan Camera

Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: FC1650GE

Feature

Capable of image transmission over 100m without repeater.
Capable of capturing images in PC without image capture board.
Equipped with IP engine for high speed image transmission.
Jumbo frame packet-compatible.
When the external trigger signal is input, the image is reset in random timing (Asynchronous timing) and the electronic shutter image can be obtained at a given point in time. (Asynchronous shutter mode)
Camera connector (6-pins) has the trigger input terminal and the strobe timing signal output terminal for high speed random shutter (Asynchronous shutter)
Variant trigger modes including asynchronous shutter in H-reset mode are equipped.
The current setting status of the camera can be displayed over the captured image using superimposing function that is capable of displaying text information by OSD.
The camera is shipped with SDK including viewer software and various sample program sources.

Image Sensor		Progressive scanning, Interline transfer CCD 2/3 inch size Unit cell size: 6.45µm(H) × 6.45µm(V)
Effective Pixels		1392(H) × 1040(V)Square grid pattern
Read Out Scanning	Horizontal Scanning	f_H= 33.5 kHz
	Vertical Scanning	f_V= 31.4 Hz
	Pixel Clock	f_CLK= 60.00 MHz
Standard sensitivity		400 Lx at F11
Min subject illuminance		1 Lx at F 1.4
S / N Ratio		50dB or more
Video Output		Progressive scanning: 31 frame/sec Digital output: 8/10/12bit switchable GigE Vision compliant
External Sync Input		None
Electronic Shutter		1/23000sec. ～1/31sec. (No shutter)～Long exposure
Asynchronous Shutter		Preset fixed shutter/Pulse width control (H-reset ON/OFF settable for each)
Scanning Mode		Normal scan (all pixels)/Partial scan (central area)
Lens Mount		C mount (flange back fixed)
Optical Filter		None
External Control		Serial interface via Ethernet
Special Function		Image signal for Auto iris lens (without Sync. 0 to 0.7V) Function of imposing setting information over output image Function of monitoring internal temperature of camera Function of storing camera ID information
Power Supply		DC12V±10%, 500mA (Max.)

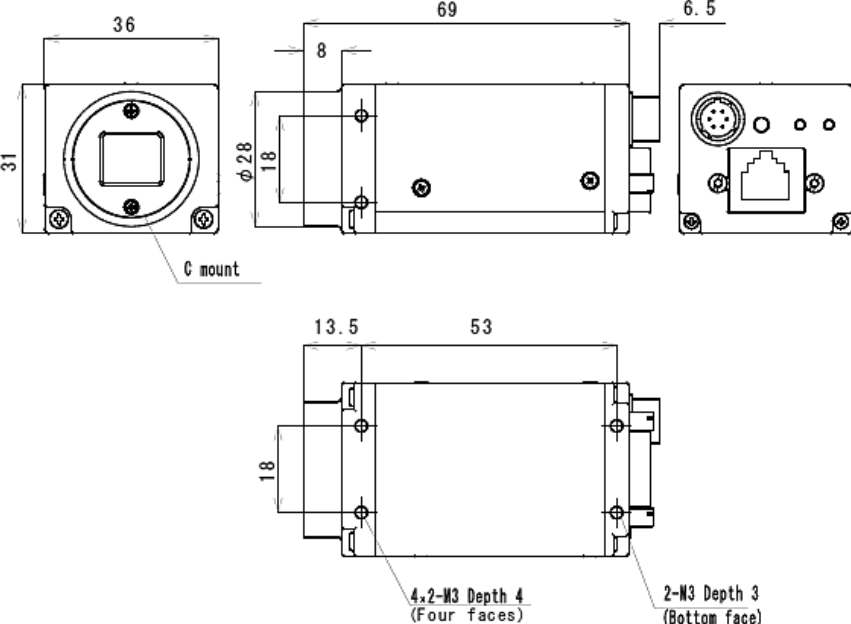

Outside Dimension		36(W) × 31(H) × 69(D)mm(connector excluded)
Weight		Approx. 120g
