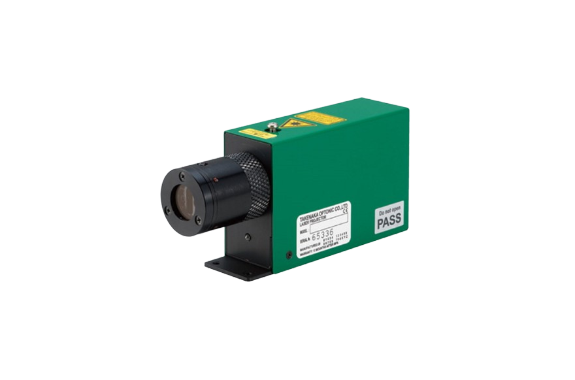

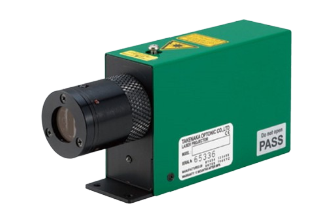

Takenaka Optonic LDU Series AC Powered Green Lasers Green
Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: LDU Series
Feature
- Projection of clear green line onto black rubber and reddish wood is possible.
- Equipped with a life pre-alarm indicator and output function for the laser unit. When the laser life is approaching, the red/green indicator lights up alternately to notify the user.
- The main unit power supply is 12 V to 24 VDC, which can be taken from an FA equipment power supply. The AC adapter type can be directly connected to the AC power supply for operation.
- Cross patterns (cross-shaped) are also available in addition to line patterns.
LDU20 (10) 515C1 (-A): Line length 150 x 150 / WD1,000
LDU20 (10) 515C2 (-A): Line length 1,000 x 1,000 / WD1,000
Specifications
| Product Name | Laser Projector | |
|---|---|---|
| Laser Color | Green | |
| Model | LDU20515LZ3(-A) | LDU10515LZ3(-A) |
| Work Distance (W.D.) | 100 mm to 5,000 mm | |
| Line Length | 1,300 mm / W.D. 1,000 mm | |
| Line Width | 1 mm or less / W.D. 1,000 mm | |
| Projection System | Variable lens focus type | |
| Wave Length | 515 nm | |
| Optical Output Power | Class 2 (extended sources) | |
| Average Operating Life | 10,000 hours | |
| Operating Voltage/Current | 12 V to 24 VDC 100 mA (A) AC adapter type 100 V to 240 VAC (3 VA) Plug type A | |
| Indicator | Power indicator (green), Life pre-alarm indicator (red/green) | |
| Life Pre-alarm Output | NPN open collector Rated 30 VDC, 100 mA | |
| Connection | Lead-wire cable with connector (length: 1 m) | |
| Operating Temperature | -10℃ to 50℃ (non freezing) | |
| Operating Humidity | 20 to 85%RH (non condensing) | |
| Degree of Protection | IP40 | |
| Mass | Approx. 700 g | |
