- Takenaka Optonic TL-7400FCL 7400 Pixels FFC Featured Camera Link Compliant Digital Line Scan Camera
TAKENAKA OPTONIC

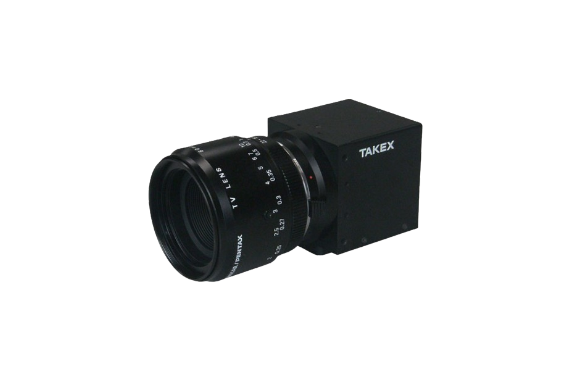

Takenaka Optonic TL-7400FCL 7400 Pixels FFC Featured Camera Link Compliant Digital Line Scan Camera
Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: TL-7400FCL
Feature
- FFC function is installed. (FFC: Flat Field Correction is a function to coordinate the wave pattern irregularity with a lens and the sensor element flatly.)
- Since various models of capture boards from board manufacturers can be connected, it is easy to get high-precision images from the camera.
- Simplified exposure control feature provides the output of the constant image level against fluctuations of the period of the external rotary encoder signal. (At the scan rate lower than 6.3 kHz)
- DC 12V single power operation
- Small and lightweight
Specifications
| Image sensor | CCD |
|---|---|
| Number of pixels | 7,400 |
| Pixel size | 4.7µm × 4.7µm |
| Photo array length | 34.8 mm |
| Data rate | 100 MHz (Max) |
| Scan rate | 12.71 kHz |
| Line transfer pulse input | 79µsec (Min) 100 Ω terminated |
| Video output (Digital output) | Base Configuration 2 × 8/10 bit |
| Sensitivity | 50 V/lx.sec |
| Saturation exposure | 0.13 lx.sec (on the device) |
| Dynamic range | 2000 (Typ.On thesensor spec.) |
| Output ununiformity | 3 % standard at 50 % of saturation output. (on the element) |
| Power supply | +12 V ± 0.5 V (600 mA) |
| Operation temperature range | 0 to 40ºC (with no condensation) |
| Operation humidity range | 85 % Max |
| Storage temperature range | -10 to 65ºC (with no icing or condensation) |
| Weight | 360g or less |
| External dimension | 64 (W) × 64 (H) × 80.3 (D) mm |
| Lens mount | F mount (Standard) K mount (Optional) |

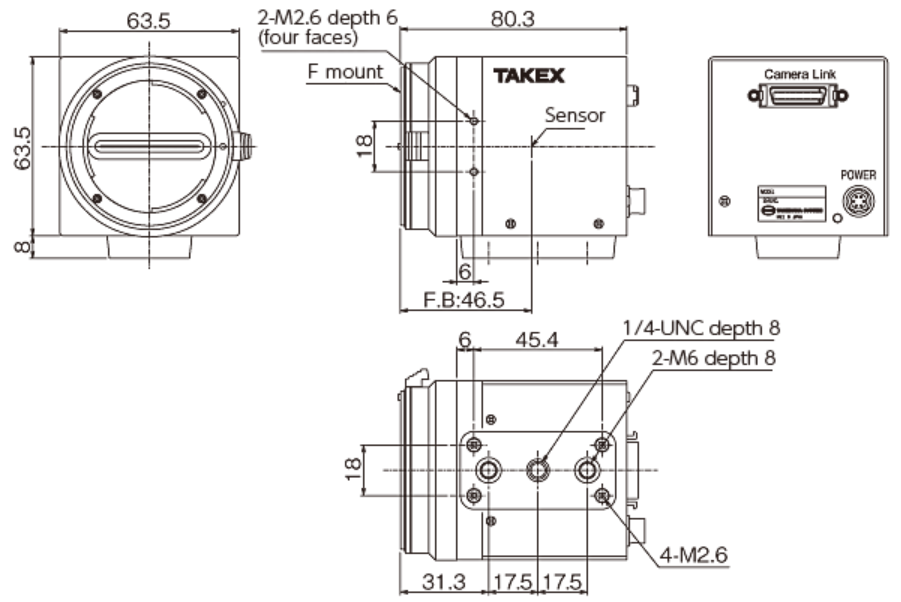

Dimensional Outline Drawing
