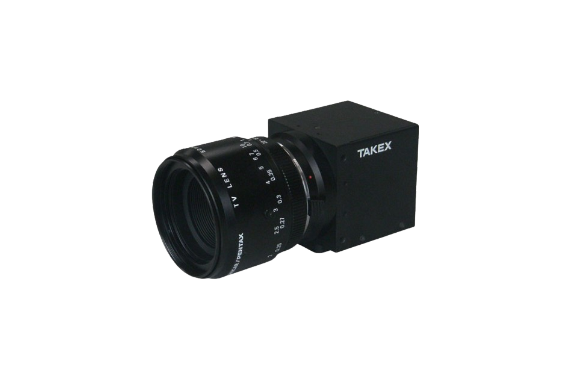

Takenaka Optonic TL-5150UCL 7.45kHz Scan Rate / Camera Link Compliant Digital Line Scan Camera
Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: TL-5150UCL
Feature
- The equipment operates with a single DC12V power source.
- The pixel size is large enough (70µm) to obtain high S/N images.
- Reduction in size and weight has been realized by adopting original circuit and mechanism design.
- Simplified exposure control function is incorporated.(at below 3.2kHz in scan rate)
Specifications
| Number of pixels | 5150 |
|---|---|
| Pixel size | 7µm ×7µm |
| Photo array length | 36.05 mm |
| Data rate | 40 MHz |
| Scan rate | 7.45 kHz Max |
| Line transfer pulse input | 134.2 µsec |
| Video output | Base Configuration 2 × 8/10 bit: |
| Sensitivity | 50 V/lx.sec |
| Saturated exposure amount | 0.23 lx.sec (on the element) |
| Output ununiformity | 3 % standard at 50 % of saturation output (on the element) |
| Power supply | DC +12 V ± 0.5 V (350 mA or less) |
| Operation temperature range | 0 to +40ºC |
| Operation humidity range | 85 % Max. |
| Storage temperature range | -10 to +65ºC |
| Weight | 360 g or less |
| External dimension | 64 (W) × 64 (H) × 80.3 (D) |
| Lens mount | F Mount |

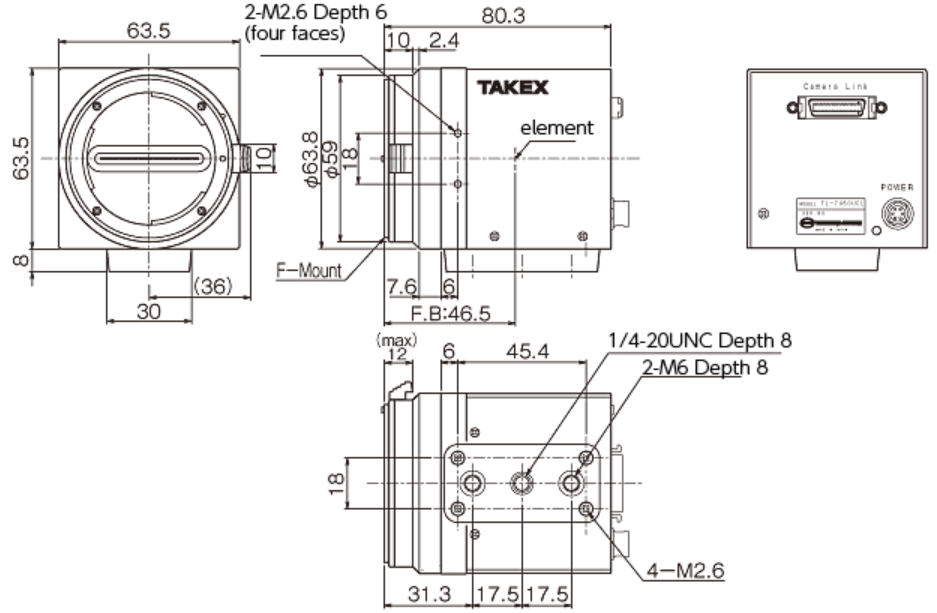

Dimensional Outline Drawing
