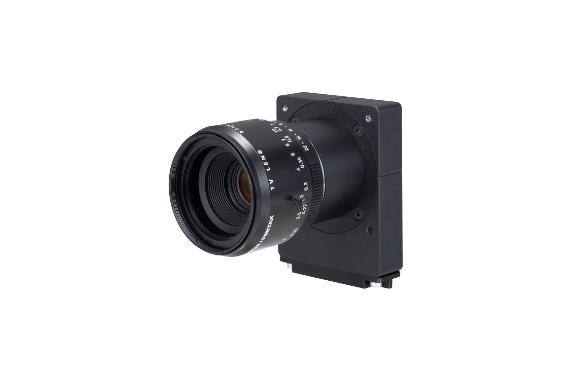

Takenaka Optonic TLC-4K7NCL(-M42D) Dual Line Bayer Format Color CMOS 80kHz Scan Rate Camera Link Compliant Digital Line Scan Camera

Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: TLC-4K7NCL(-M42D)

Feature

Type	TLC-4K7NCL(-M42D)
Image sensor	CMOS (Bayer)
Number of pixels	4096 × 2line
Pixel size	7µm × 7µm
Photo array length	28.672mm
Scan rate (Data rate)	Full 75kHz (80MHz × 8TAP) Full 47kHz (50MHz × 8TAP) Medium 40kHz (85MHz × 4TAP) Medium 38kHz (80MHz × 4TAP) Medium 24kHz (50MHz × 4TAP) Base 20kHz (85MHz × 2TAP) Base 19kHz (80MHz × 2TAP) Base 12kHz (50MHz × 2TAP) 80kHz (85MHz × 8TAP)
Video output (Digital output)	8bit Full Configuration 8bit·10bit Medium/Base Configuration
Saturation exposure	46ke-(typical value)
Dynamic range	60dB(on the element)
Output ununiformity	10％ standard at 50% of saturation output (on the element)
Power supply	+12V ±0.5V (0.5A or less)
Operational ambient	0℃～40℃
Operational humidity range	85% Max
Storage temperature range	-10℃～65℃
Lens mount	F mount(F.B. :46.5mm) M42D mounto (F.B. :12mm)
Connectors	Power Input HR10A-7R-6P (Hirose Digital output　Camera Link (MDR)

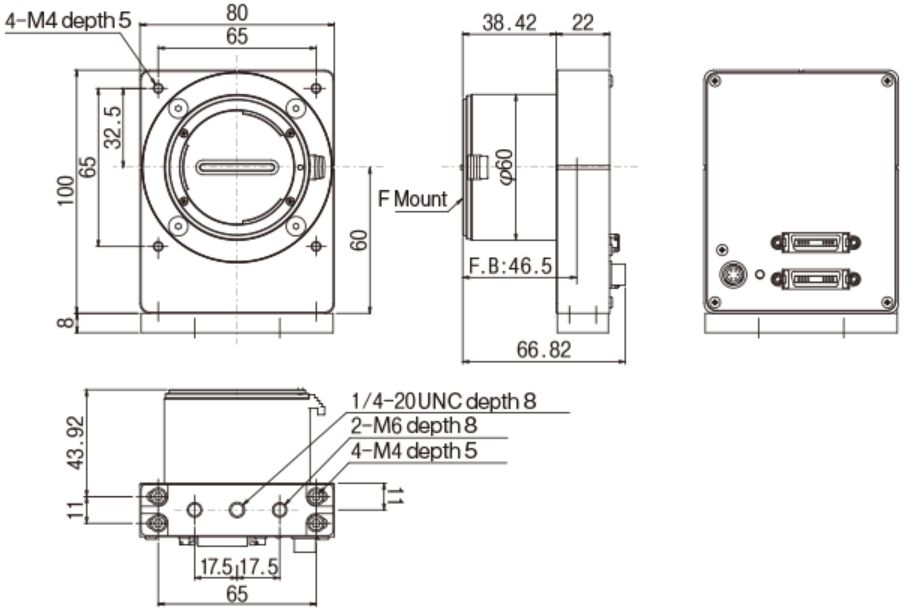

External dimension	80(W)×100(H)×60.4(D) mm
Weight	460g or less
Additional function	FFC compensation Additional function Base /Medium/ Full config. Switchable(only 4096NCL supported full config.) Horizontal / vertical binning , horizontal/ vertical averaging Switchable clock speed
