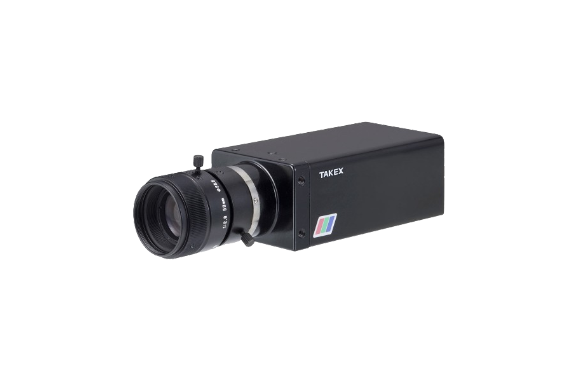

Takenaka Optonic FS2600CL Camera Link Compliant Progressive Scan Color Camera

Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: FS2600CL

Feature

The current setting status of the camera can be displayed over the captured image using superimposing function enabling to display text information by OSD.
When the external trigger signal is input, the image is reset at a random timing and the electronic shutter image can be obtained at a given point in time.
CCD output mode is switchable between QUAD/DUAL/SINGLE mode.
This camera has the auto-correction function to reduce the level difference in brightness at the boundary of right,left,upper and lower images.
VElectric shutter release timing is output as a stroboscopic emission trigger signal. The camera is designed so that the strobe signal can be output even in the continuous shutter mode, and this contributes to the power saving for LED lighting and others as well as the reduction of smear.
The monitoring function for measuring the internal temperature of the camera is incorporated.
Preset trigger input and pulse width trigger input as asynchronous shutter trigger input are available.

Specifications

Image sensor		Progressive scanning, interline transfer CCD 2/3 inch size Unit cell size: 5.5µm(H) × 5.5µm(V) Color imagesensor （RGB Bayer arrangement）
(Number of ) Effective Pixels		1920(H) × 1080(V) Square grid pattern
Read Out Scanning	Horizontal Scanning	f_H=36.0kHz(QUAD)：36.0kHz(DUAL)：18.8kHz(SINGLE)
	Vertical Scanning	f_V=62.7Hz(QUAD)：31.4Hz(DUAL)：16.4Hz(SINGLE)
	Pixel Clock	f_CLK=40.00 MHz
Sensitivity Reference value		800 lx F11 (at 1/30sec, 512/1024 digital output)
Min. subject illuminance		8Lx F1.4
S/N		Approx. 50dB
Video output		Progressive 62fps (at quad output), 31 fps（at dual output), 16 fps（at single output) Digital out/CameraLink (Medium/Base Configuration) 62fps(QUAD) :40.0MHz × 4tap × 8 or 10bit out (Medium) 31fps(DUAL) :40.0MHz × 2tap × 8 or 10bit out (Base) 16fps(SINGLE) :40.0MHz × 1tap × 8 or 10bit out (Base)
External Sync Input		Internal Sync only
Electronic shutter		1/25000sec～1/62sec (No shutter) 62fps (QUAD) 1/25000sec～1/31sec (No shutter) 31fps (DUAL) 1/15000sec～1/16sec (No shutter) 16fps (SINGLE)
Asynchronous Shutter		Preset fixed shutter/Pulse width control
Scanning Mode		Normal scan (all pixels)
Lens Mount		C mount (flange back fixed)
Optical filter		IR cut filter
External Control		Serial interface via Camera Link
Special Function		Function of superimposing setting information on screen Function of monitoring internal temperature of camera Function of storing camera ID information
Power Supply		DC12V±10％、400ｍA （Reference value）
Operational ambient temperature		0 to 40℃ (with no condensation)
Storage temperature range		-30 to 60℃ (with no icing or condensation)
Anti-shock		70Ｇ
Anti-vibration		7G

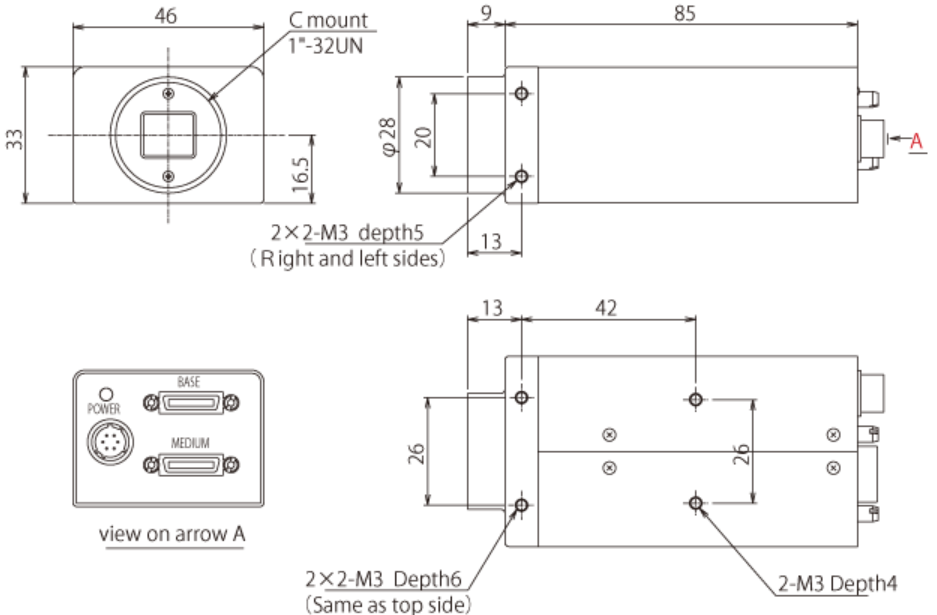

External dimension		46(W) × 33(H) × 94(D) mm
Weight		Approx. 200g
