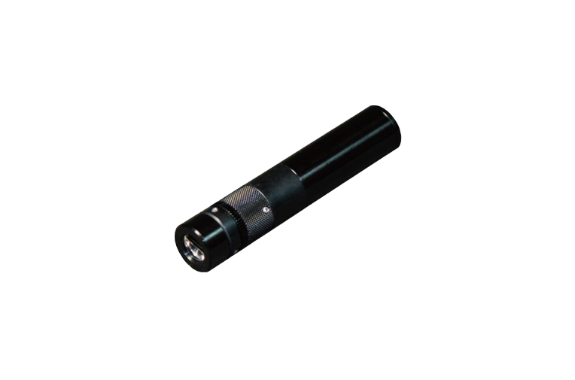

Takenaka Optonic LDF-HFLW Series High Power Flat Line Lasers For Image Sensing

Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: LDF-HFLW Series

Feature

Flat line lasers with uniform brightness, high intensity, and wide line length.
Easy focus adjustment with a ring focus adjustment mechanism.
Easy to adjust the work distance with low optical power fluctuation in line direction.
Ultra-fine and long line with line length : distance = 1:1 can be obtained. (In the case of 406nm)
Wavelengths of 406 nm blue-violet, 660 nm red, and 515 nm green, and the original outputs of 20, 30, 60, and 90 mW are available (only 10 mW/20 mW at 515 nm).
406 nm is ultra-fine and low-noise, and 660 nm has a long service life of 20,000 hours or more.
At 515 nm, a high S/N ratio is obtained for black workpieces and red-hot materials.
The lights can be turned on and off by the external control function.
The analog type AN series is also available with light intensity adjustment from 0 to 5 V.

Product Name	Laser Projector
Laser Color	Red		Green		Blue
Model	LDF20660FLW(-A)	Class 2	LDF10515FL(-A)	Class 2	LDF20406FLW(-A)	Class 2
	LDF30660HFLW(-A)	Class 3R	LDF20515FL(-A)	Class 3R	LDF60406HFLW(-A)	Class 3R
	LDF60660HFLW(-A)	Class 3R	LDF60520HFLW(-A)		LDF90406HFLW(-A)	Class 3R (extended sources)
	LDF90660HFLW(-A)	Class 3R (extended sources)	LDF40520HFLUW(-A)
Work Distance (W.D.)	50 mm to 1,000 mm
Projection Pattern and Dimensions	Line pattern Length: 80 mm Width: 50 µm or less W.D.: 100 mm		Line pattern Length: 100 mm (180 mm: Only HFLUW) Width: 50 µm or less W.D.: 100 mm		Line pattern Length: 100 mm Width: 40 µm or less W.D.: 100 mm
Projection System	Variable lens focus type
Wave Length	660 nm		515 nm		406 nm
Average Operating Life	20,000 hours		10,000 hours
Operating Voltage/Current	DC5V 100 mA to 180 mA		DC12V 150 mA		DC12V 50 mA to 120 mA
Operating Voltage/Current	(-A): AC adapter 100 V to 240 VAC
Indicator	N/A
Function	Light intensity adjustment: 0 to 100%, External control
Connection	Lead-wire cable (length: 1 m) (-A: with DC Jack for AC adapter)
Operating Temperature	0℃ to 40℃ (non freezing)
Operating Humidity	20 to 85%RH (non condensing)
Degree of Protection	IP40
Mass	Approx. 60 g (AC adapter approx. 75 g)
