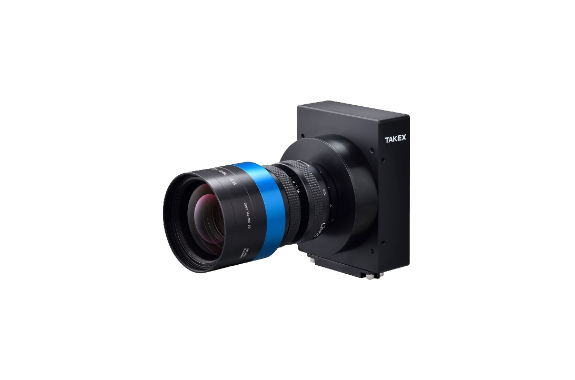

Takenaka Optonic TLC-16K5FCL 16,384 Pixel CMOS Sensor Camera Link Compliant Digital Line Scan Camera
Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: TLC-16K5FCL
Feature
- The large 5µm square pixel size sensor enables to obtain high-sensitivity and high-definition images.
- Equipped with Global shutter function and FFC function.
- Small and lightweight product with unique design
- The narrow line spacing 5µm makes less susceptible to the adverse effects of imaging from oblique angles.
Specifications
| Type | TLC-16K5FCL |
|---|---|
| Image sensor | Color Global shutter CMOS |
| Number of pixels | 16,384 × 3Line Line pitch 5µm |
| Pixel size | 5µm×5µm |
| Photo array length | 81.92mm |
| Data rate | Medium 85MHz×6Tap |
| Scan rate | 10.3 kHz |
| Line transfer pulse input | 97.1µsec (Min) |
| Digital video output | Camera Link |
| Saturation exposure | 40 ke- (typical value) |
| Flange back | 12mm |
| Power supply | +12V±0.5V (0.8A or less) |
| Lens mount | M95, P=1mm |
| Operational ambient temperature | 0℃～40℃ (with no icondensation) |
| External dimension | 102(W)×130(H)×37(D) |
| Weight | 750g or less |
