Takenaka Optonic LDS Series Versatile Lasers
Manufacturer: TAKENAKA OPTONIC CO., LTD.

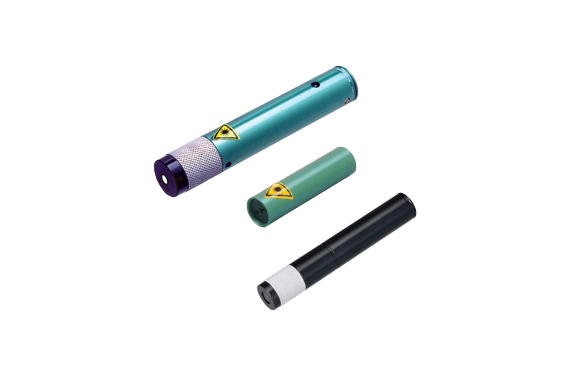

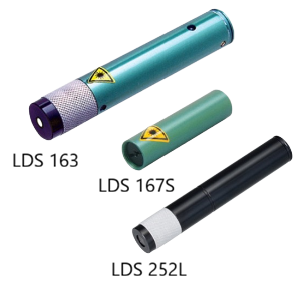

Model: LDS Series (LDS 163 / LDS 167S / LDS 252L)
Feature
- Small, light-weight, long-life and high-quality lasers.
- Provides a long laser pattern with a wide fan angle.
- This is the most basic type.
- The pattern shape is available in spot, line and cross, and the focus distance can be adjusted.
- More compact φ8 type is also available. (LDS167S)
- The pattern shape may vary depending on the ambient light.
Specifications
| Product Name | Laser Projector | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Laser Color | Red | Green | Red | ||||||
| Model | LDS167S | LDS163S | LDS263S | LDS163L | LDS263L | LDS563L | LDS252L | LDS152S | LDS163C |
| Work Distance (W.D.) | 1,000 mm fixed | 100 mm to 5,000 mm | 300 mm to 1,000 mm | 300 mm to 1,000 mm | 100 mm to 3,000 mm | ||||
| Projection Pattern and Dimensions | Spot pattern φ1 W.D.: 1,000 mm | Line pattern Length: 1,300 mm Width: 0.8 mm W.D.: 1,000 mm | Line pattern Length: 1,200 mm or more Width: 1 mm W.D.: 1,000 mm | Spot pattern Spot Width: φ1 W.D.: 1,000 mm | Cross pattern 200 mm x 200 mm W.D.: 1,000 mm | ||||
| Projection System | Fixed | Variable lens focus type | |||||||
| Wave Length | 670 nm | 635 nm | 515 nm | 635 nm | |||||
| Optical Output Power | 1 mW Class 2 | 1 mW Class 2 | 2 mW Class 3R | 1 mW Class 2 | 2 mW Class 2 | 5 mW Class 2 | 1.4-1.7 mW Class 2 | 0.7-1.0 mW Class 2 | 1 mW Class 2 |
| Average Operating Life | 10,000 hours | 20,000 hours | 10,000 hours | ||||||
| Operating Voltage/Current | DC5V±5% 100 mA (Max) | DC5V±5% 200 mA (Max) | DC5V±5% 100 mA (Max) | ||||||
| Indicator | N/A | ||||||||
| Connection | Lead-wire cable with connector (length: 1.5 m) | Connector | Wire | Lead-wire cable with connector (length: 1.5 m) | |||||
| Operating Temperature | -10℃ to 50℃ (non freezing) | -10℃ to 40℃ (non freezing) | -10℃ to 40℃ (non freezing) | -10℃ to 50℃ (non freezing) | |||||
| Operating Humidity | 20 to 85%RH (non condensing) | ||||||||
| Degrees of Protection | IP40 | ||||||||
| Mass | Approx. 30 g | Approx. 40 g | |||||||
