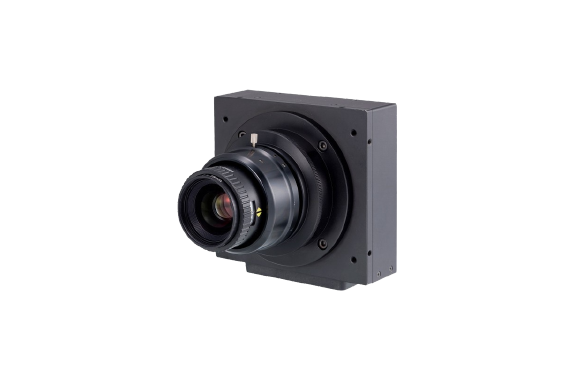

Takenaka Optonic TLC-7500CLD 7500 Pixels×3 / 6.25kHz Scan Rate Camera Link Compliant Digital Color Line Scan Camera
Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: TLC-7500CLD
Feature
- The equipment operates with a single DC12V power source.
- The pixel size is large enough (9.325µm) to obtain high S/N images.
- Dark current correction circuit helps to obtain stable images even when the ambient temperature changes.
- The color gap correction function is equipped.
- The shading correction function is equipped.
Specifications
| Number of pixels | 7500 × 3 |
|---|---|
| Pixel size | 9.325µm ×9.325µm |
| Photo array length | 69.9 mm |
| Data rate | 50 MHz (for each RGB) |
| Scan rate | 6.25 kHz |
| Line transfer pulse input | 160µsec (MIN) |
| Video output | 8 bit: Base configuration 10 bit: Medium configuration |
| Sensitivity | 50 V/lx.sec |
| Saturation exposure | 0.05 lx.sec (on the device) |
| Dynamic range | 500 (Standard, Device) |
| Output ununiformity | 3 % standard at 50 % of saturation output. |
| Power supply | +12 V ± 0.5 V (600 mA) |
| Operation temperature range | 0ºC to +40 |
| Operational humidity range | 85 % MAX |
| Storage temperature range | -10ºC to +65ºC |
| Weight | 720g or less |
| External dimension | 120 (W) × 120 (H) × 56.3 (D) |
| Lens mount | M72, P=0.75mm |

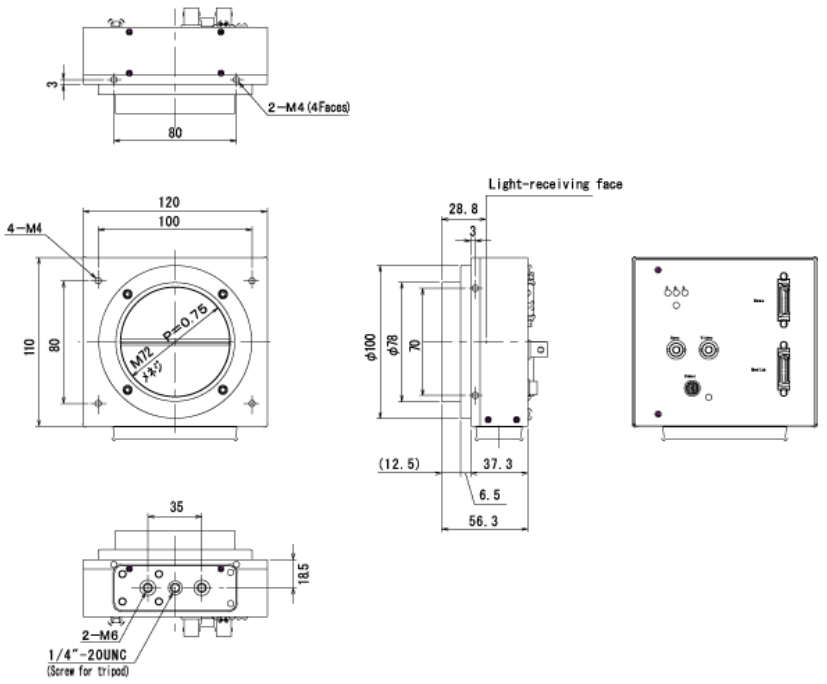

Dimensional Outline Drawing
