TAKENAKA OPTONIC

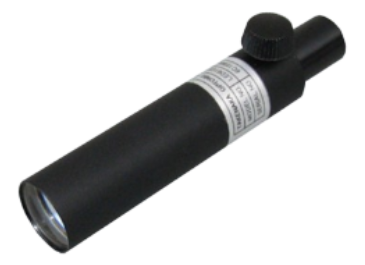

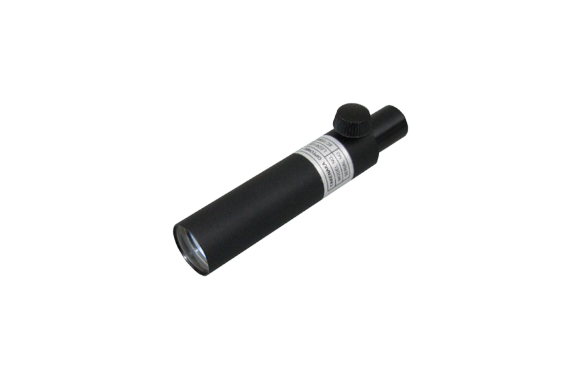

Takenaka Optonic LED Series LED Projectors
Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: LED Series
Feature
- Equipped with a high-brightness LED that does not tire eyes and can be used safely.
- LED colors: orange and green.
- The pattern shape is available in cross, line and grid, and the focus can be adjusted.
- Long life
- Low heat generation
- Small, light weight, and high quality
Specifications
| Product Name | LED Projector | |||||
|---|---|---|---|---|---|---|
| Model | LED54C5-01 | LED54L5-02 | LED54T5-03 | LED61C5-01 | LED61L5-02 | LED61T5-03 |
| Work Distance (W.D.) | 110 mm to 500 mm | |||||
| Projection Pattern and Dimensions | Cross Length: 8 x 8 mm Width: 0.5 mm W.D.: 150 mm | Line Length: 8 mm Width: 0.5 mm W.D.: 150 mm | Grid Overall length: 10 x 10 mm Width: 0.5 mm W.D.: 150 mm | Cross Length: 8 x 8 mm Width: 0.5 mm W.D.: 150 mm | Line Length: 8 mm Width: 0.5 mm W.D.: 150 mm | Grid Overall length: 10 x 10 mm Width: 0.5 mm W.D.: 150 mm |
| Projection System | Variable lens focus type | |||||
| Wave Length | 525 nm | 621 nm | ||||
| Optical Output Power | 9,600mcd 20 mA | 8,000mcd 20 mA | ||||
| Average Operating Life | 50,000 hours | |||||
| Operating Voltage/Current | 5 VDC±5% 50 mA or less | |||||
| Indicator | N/A | |||||
| Connection | Lead-wire cable with connector (length: 1.5 m) | |||||
| Operating Temperature | -10℃ to 50℃ (non freezing) | |||||
| Operating Humidity | 20 to 85%RH (non condensing) | |||||
| Degree of Protection | IP40 | |||||
| Mass | Approx. 40 g | |||||
