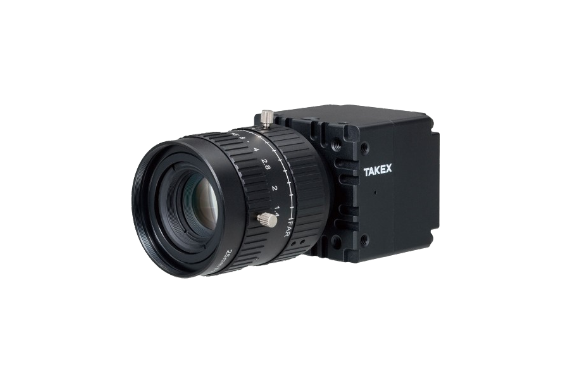

Takenaka Optonic FCM12MGE GigE Vision Compliant Progressive Scan Camera
Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: FCM12MGE
Feature
- Capable of image transmission over 100m without repeater.
- The high-sensitivity CMOS sensor enables the adoption of general purpose C-mount, despite the12 million highpixels
- Reduced size and weight by original mechanism and electrical circuit design
- Power can be supplied either camera connector on the back panel or via a LAN cable (PoE).
Specifications
| Image sensor | Monochrome CMOS 1 inch size Progressive scanning / Rolling shutter system Unit cell size:3.1µm×3.1µm |
|---|---|
| Effective pixels | 4,000(H)×3,000(V) |
| Sensitivity | 1.4V/lx・sec (on the element) |
| Saturation exposure | 17.8Ke- (on the element) |
| Dynamic range | 77.4dB（on the element) |
| Video output | Progressive scanning:6frame/sec.(at 8bit) Digital output: 8bit/10bit/12bit（Gigabit Ethernet ） GigE Vision compliant |
| Built-in function | Global reset |
| Lens mount | C mount |
| Electronic shutter | 100usec～90msec |
| Optical filter | None |
| Operational ambient temperature | 0℃～40℃ (with no condensation) |
| Power supply | Via camera connector : DC12V±10％ 300ｍA or less |
| Via PoE : DC42V ～ 57V (48V STD) 110mA or less IEEE802.3af standard-compliant | |
| Weight | 150g |
| Outside dimension | 48(W)×45(H)×51(D) (Connector excluded) |
