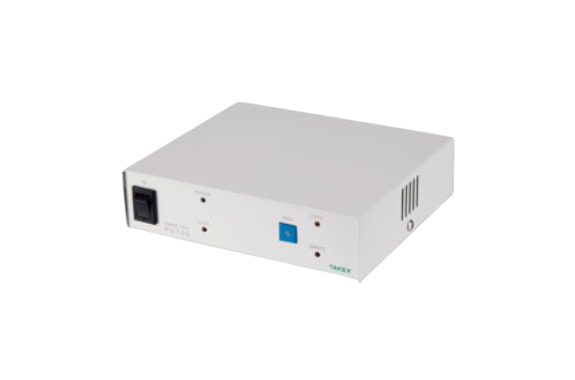

Takenaka Optonic PU100-K1 Power Supply Unit For Progressive Scan Camera

Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: PU100-K1

Feature

It can receive the image signal from the camera and can also send the external trigger signal and HD/VD sync signal to the camera.
Three types of trigger signals are available.
C-MOS logic level signal
3.3V logic level signal
Current signal via photo coupler
Equipped with a one-shot trigger function by a push button switch on the panel and a cyclic trigger function (function to automatically generate cyclic trigger signal).
Equipped with an interlock function to prevent a trigger signal being input by operation of a panel switch.

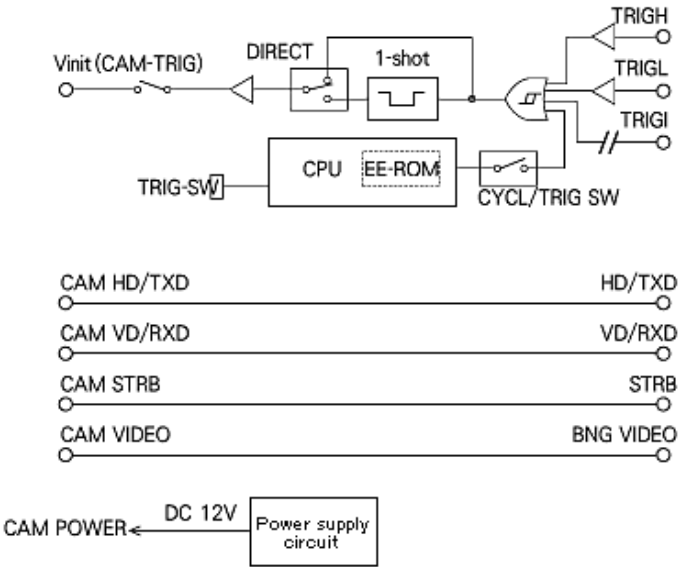

Trigger signals for asynchronous shutter operation can be converted into pulses of predetermined duration (1ms) by an internal one-shot timer or can be applied directly to the camera without change.
Also trigger signal input circuit can be separated from a trigger input terminal of the camera by a switch, where necessary.

Applicable camera	FC and NC series cameras
Trigger input	Male D-Sub connector, internally pulled up to 5V by 4.7kΩregister. (excluding optically isolated trigger input) Negative logic, minimum trigger pulse width: 10µsec Trigger level range (High level trigger) H=3.7 to 5.5V, L=-0.5 to 0.5V (Low level trigger) H=2.5 to 3.5V, L=-0.5 to 0.5V (Optically isolated trigger) OFF=0 to 0.5mA, ON=8.0 to 10mA
HD/VD input	HD/VD sync signal being input to female D-Sub connector on the rear panel are sent to the camera via camera cable.
Output voltage	12V DC ± 10%, 800mA max
Power consumption	5W or less (excluding camera)
Supply voltage	85 to 264V AC (normally 100V), 50/60Hz
Outside dimension	150 (W) × 43 (H) × 130 (D) mm
Weight	Approx. 600 g
