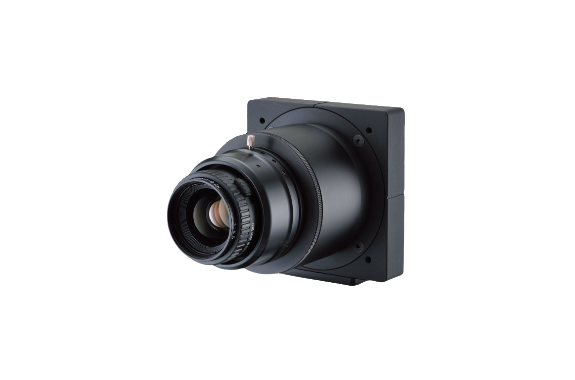

Takenaka Optonic TLC-7300UCL 7300 Pixels×3 /15kHz Scan Rate Camera Link Compliant Digital Color Line Scan Camera
Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: TLC-7300UCL
Feature
- High S / N images are obtained with 10 micron square size sensor.
- Equipped with Color gap correction function.
- Equipped with FFC function.
- Equipped with White balance function.
- Possible to get stable video signal despite a change of ambient temperature, as the dark current correction circuit is incorporated.
- Operation with a single DC12 power source
- The small and lightweight product by original design
Specifications
| Number of pixels | 7300 × 3 line | |
|---|---|---|
| Pixel size | 10µm × 10µm | |
| Photo array length | 73 mm | |
| Data rate | 80 MHz (RGB) | 60MHz × 2 (RGB) |
| Scan rate | 10 kHz | 15 kHz |
| Line transfer pulse input | 100 µsec (Min) | 66 µsec (Min) |
| Video output | 8 bit Base configuration | 8 bit Medium configuration |
| Sensitivity | 50 V/lx.sec (at Gain setting 1) | |
| Saturation exposure | 0.19 lx.sec (on the element) | |
| Dynamic range | 250 (on the element) | |
| Flange focus | 28.8mm | |
| Output ununiformity | 10% standard at 50% of saturation output(on the element) | |
| Power supply | +12 V ± 0.5 V (1.5A or less) | |
| Operational ambient temperature | 0ºC to +40 | |
| Operational humidity range | 85 % MAX | |
| Storage temperature range | -10ºC to +65ºC | |
| Lens mount | M80, P=0.75mm | |
| External dimension | 108(W) × 110(H) × 55.5(D)mm | |
| Weight | 720g or less | |

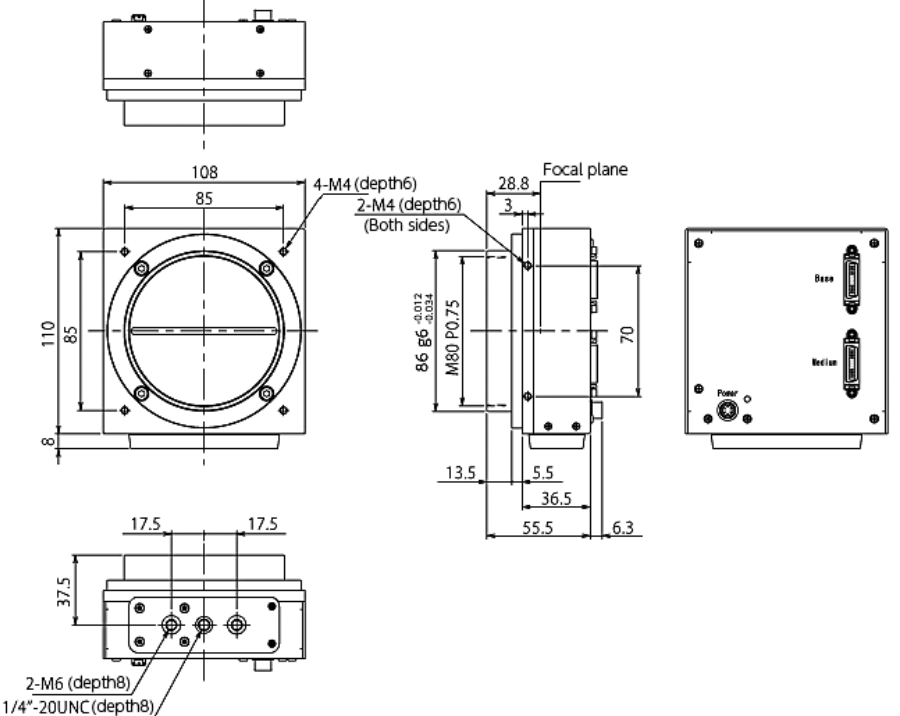

Dimensional Outline Drawing
