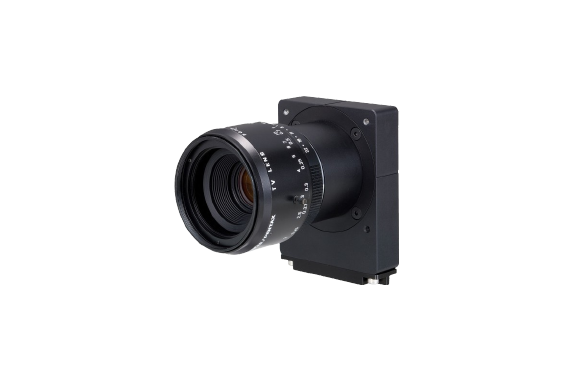

Takenaka Optonic TL-8K35NCL(-M42D) 80kHz Scan Rate / Camera Link Compliant Digital Line Scan Camera

Manufacturer: TAKENAKA OPTONIC CO., LTD.
Model: TL-8K35NCL(-M42D)

Feature

It matches well to most of capture boards from other manufacturers, which makes it possible to construct high-precision image processing systems.
Possible to get high-definition images thanks to 3.5µm square pixel size.
Equipped with Global shutter function and FFC function.
Anti-blooming function is incorporated.
Possible to switch between Base and Full config. mode via serial communication.
Equipped with versatile F-mount.
Dark current correction circuit helps to obtain stable images even when the ambient temperature changes.
The equipment operates with a single DC12V power source.
Reduction in size and weight is realized by original design.

Type	TL-8K35NCL(-M42D)
Image sensor	Global shutter CMOS
Number of pixels	8,192
Pixel size	3.5µm×3.5µm
Photo array length	28.672mm
Scan rate （Data rate）	Full 80kHz（85MHz×8TAP） Full 80kHz（80MHz×8TAP） Full 43kHz（50MHz×8TAP） Base 18kHz（80MHz×2TAP） Base 12kHz（50MHz×2TAP）
Video output (Digital output)	8bit/10bit/12bit Base Configuration 8bit Full Configuration
Line transfer pulse input	12.5µsec (Min)
Sensitivity	gain1=1.2, gain2= 4.8 DN/nj/cm²
Saturation exposure	23 ke- (typical value)
Dynamic range	60dB (on the element)
Output ununiformity	10% standard at 50% of saturation output
Power supply	+12V±0.5V (0.5A or less)
Operational ambient temperature	0℃～40℃ (with no condensation)
Operational humidity range	85% Max
Storage temperature range	-10℃～65℃ (with no icing or condensation)
Weight	460g or less

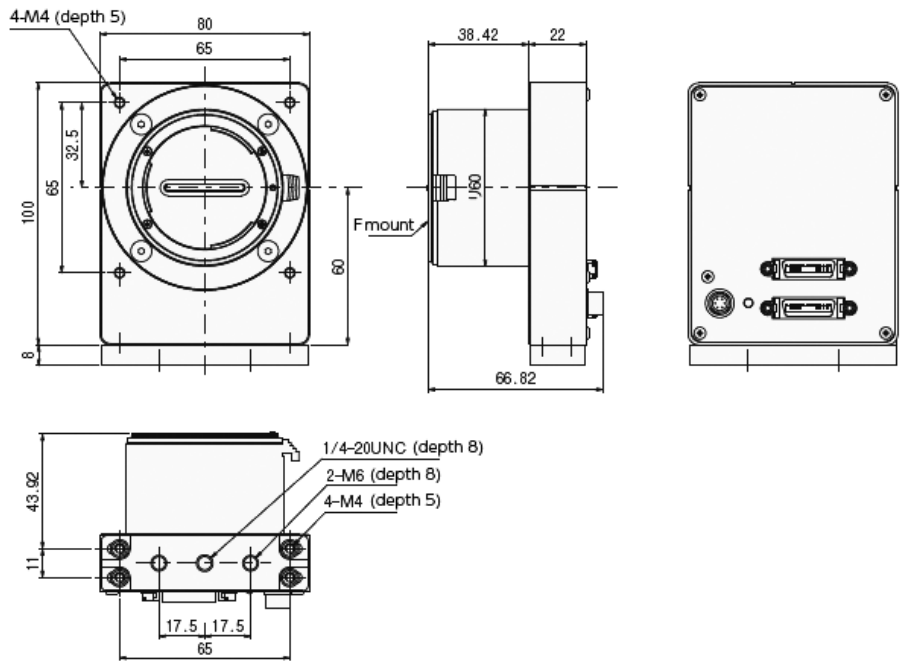

External dimension	80(W)×100(H)×60.4(D) size except the salient
Lens mount	F mount(F.B. :46.5mm) M42D mounto (F.B. :12mm)
Additional function	FFC compensation Base / Full config. switchable Horizontal / vertical binning , horizontal/ vertical averaging Switchable clock speed
