Takigen

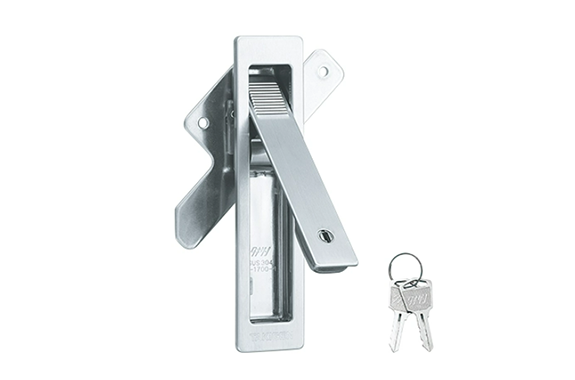

Takigen A-1700 Stainless Steel Flat Handle Series

Manufacturer: TAKIGEN MFG.CO.,LTD.
Model: A-1700
Made of stainless steel, it has excellent corrosion resistance.
Can be used on either side (you can switch between left and right by flipping the clasp).
Specification
Material: Cold-rolled stainless steel plate (SUS304)
Surface finish: Hairline finish
Key number: 0200
Applicable plate thickness: 0 to 3.5 mm
Accessories: Stopper plate, screw set, 2 keys
Applications
Remarks
To ensure long-term use, periodically apply high-performance lubricant C-985 (page 1438) to the sliding parts.
The lock on this product is operated using the tip of the key.
Please note that turning the key more than necessary may damage the lock and tip of the key.
We recommend applying an anti-loosening agent to the screws used to attach the stopper plate on this product to prevent them from loosening.
