Manufacturer: TAKIGEN MFG.CO.,LTD.

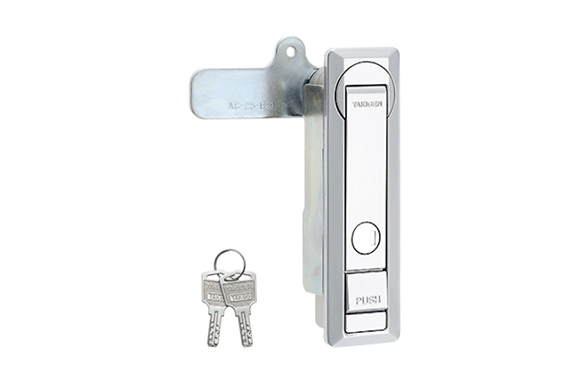

Model: A-495

The strongest type in the flat handle series
Waterproof type (uses O-ring and sheet packing)
Can be used on either hand (the cam and stopper plate can be reversed to switch between left and right).
The lock comes standard with the easy-to-operate new reversible key TAK60 with dustproof shutter (A-495-TAK60)

Specification

Material: Zinc alloy (ZDC)
Surface finish: Satellite chrome plating (MZCr)
Key number: TAK60・0200
Accessories: Stopper plate, mounting plate, screw set, 2 keys

Applications

Cubicles, distribution boards, control panels

Remarks

Please use in combination with the rod roller unit (AC-25-RA/RB/RC) to tighten the door.
By changing the mounting screw to (M5 x 14SW), it can accommodate plate thicknesses up to 4mm.
We also manufacture different key versions.
A-497-2 is scheduled to be discontinued.
We recommend applying a “loosening prevention agent” to the stopper plate mounting screw of this product to prevent it from loosening.
