Manufacturer: TAKIGEN MFG.CO.,LTD.

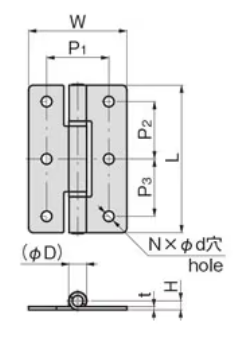

Model: B-1249-1

Features

Holds doors or lids at any angle.
Sleek flat hinge type with no protrusions on the exterior.
Uses resin friction so no metal dust or abnormal noise is generate
Initial torque can  maintain for many years.
Stainless steel is passivated so it can be used outdoors.
Installation is compatible with B-1078-12, -13, -15, B-1209-1, -2, -3.

Specification

●Material:

Blade/cold rolled stainless steel plate (SUS304)

Shaft/stainless steel rod (SUS304)

Plug/polyacetal weather resistant (POM)

●Surface finish: glossy barrel polishing, passivation treatment

●Durability test: more than 20,000 times (at rated torque)

●Usage temperature range: 0 to +40°C

Purpose

●Office equipment/outdoor equipment
