Manufacturer: TAKIGEN MFG.CO.,LTD.

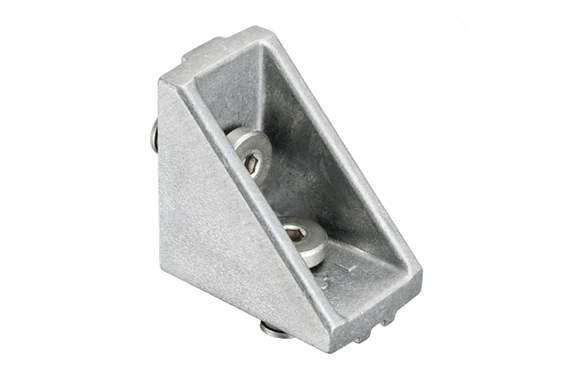

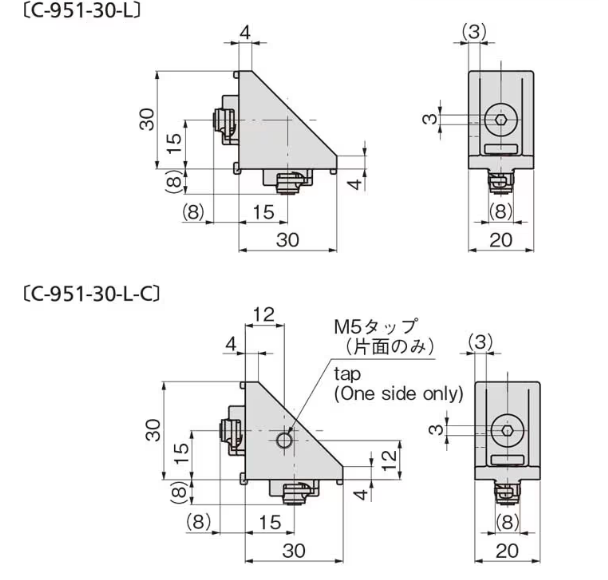

Model: C-951-30-L

Features

No need to prepare bolts and nuts. Can be quickly attached to an aluminum frame.
The temporary fastening function makes position adjustment easy.
Can be attached directly to the desired position, making it easy to retrofit.
Kurukachi series

Specification

●Material:

Body/Aluminum alloy (ADC)

, Bolt/Stainless steel bar (SUS304)

, Nut/Stainless steel plate (SUS304)

●Surface finish: Body and nut/Barrel polishing

Purpose

● Assembly of aluminum frame housing

Remarks

Recommended tightening torque: 4 N・m

Do not use power tools to tighten or remove.

When removing, turn the bolt all the way.

Compatible aluminum frames (groove width 8 mm):

Misumi 6 series,

SUS SF30 series

This product is for L-shaped connections. Please contact us for cross connection types and different sizes.
