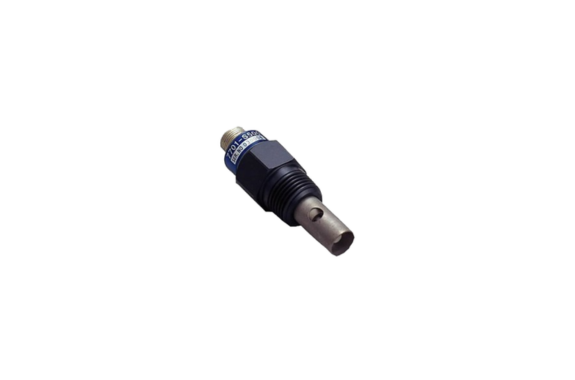

TECHMO 7701 Series Sensor

Manufacturer : TECHNO MORIOKA
Model: 7701 series

It offers excellent responsiveness to heat, enabling accurate measurements even in environments with drastic temperature changes.

Mounting diameter R1/2; Installation piping R3/4; Electrode part: Titanium

These are sensors (measuring components) for the 7731/32, 7721/22, and 7741/7742/7735 series.
The cables are connector-connected for easy installation.
You can select the appropriate sensor based on the material (metal/plastic) and thread diameter (R3/4/R1/2) of the piping you will be installing it on.
A separate sensor cable is required.
Please refer to the page for the dedicated cable for the 7701 sensor.

Compatible sensors

Compatible water quality meters: 7721, 7722, 7731, 7732. 7735, 7741, 7742

Model	7701-S300	7701-S310	7701-S600	7701-S400	7701-S500
Product image
Electrode material	titanium	titanium	titanium	titanium	titanium
Body material	SUS-316L	SUS-316L	SUS-316L	Heat-resistant PVC	SUS-316L
Connector connection	None (direct cable connection)	Protection class IP67	Protection class IP67	Protection class IP67	Protection class IP67
Mounting pipe diameter	R3/4	R3/4	R3/4	R1/2	R1/2
Mounting piping material	Resin piping, tank submersion (△)	resin piping	Resin and metal piping	Resin and metal piping	resin piping
Operating pressure	1.5MPa or less	1.5MPa or less	1.5MPa or less	0.5MPa or less	1.5MPa or less
temperature	0-100℃	0-100℃	0-100℃	0-80℃	0-100℃
Sensor cable	Directly attached cable, 5m	0.5m + dedicated cable Dedicated cable selection: 7701-C005 (5m), 7701-C010 (10m), 7701-C015 (15m), 7701-C020 (20m)	0.5m + dedicated cable Dedicated cable selection: 7701-C005 (5m), 7701-C010 (10m), 7701-C015 (15m), 7701-C020 (20m)	Dedicated cable options: 7701-C005 (5m), 7701-C010 (10m), 7701-C015 (15m), 7701-C020 (20m)	Dedicated cable options: 7701-C005 (5m), 7701-C010 (10m), 7701-C015 (15m), 7701-C020 (20m)

Product Features

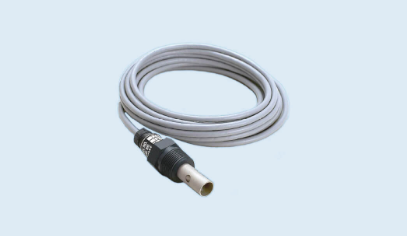

The 7701-S300
body has a Teflon coating on its surface.
Its excellent heat responsiveness allows for accurate measurements even in environments with drastic temperature changes.

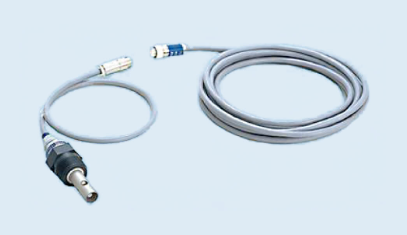

The 7701-S310
is a relay connector type designed for ease of installation.
The body is coated with Teflon.
Its excellent heat responsiveness allows for accurate measurements even in environments with drastic temperature changes.

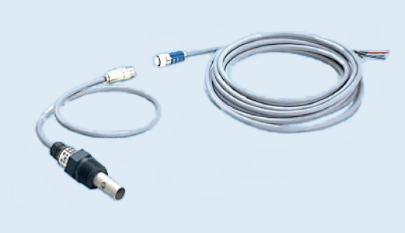

The 7701-S600
type features an insulated body and electrodes, eliminating the need for insulation treatment when attaching to metal piping. It’s
a relay connector type designed for ease of installation.

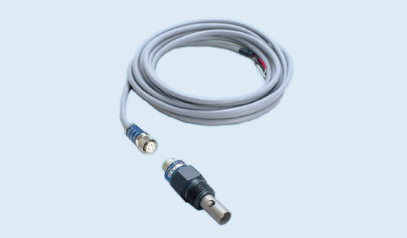

The 7701-S400
body uses heat-resistant PVC, eliminating the need for insulation.

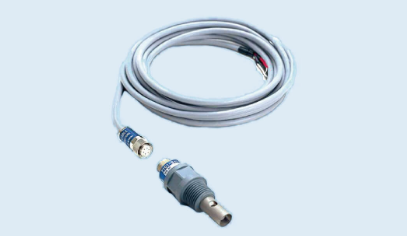

It is a direct-connection type designed for ease of installation. The 7701-S500
body has a Teflon coating on its surface.
Its excellent heat responsiveness allows for accurate measurements even in environments with drastic temperature changes.
It features a direct-connect connector for ease of installation.
