Techno Morioka Co.
Techno 7737-A100 Sensingeye737 Electrical Resistivity Meter
Manufacturer: Techno Morioka Co., Ltd.
Model: 7737-A100
Features

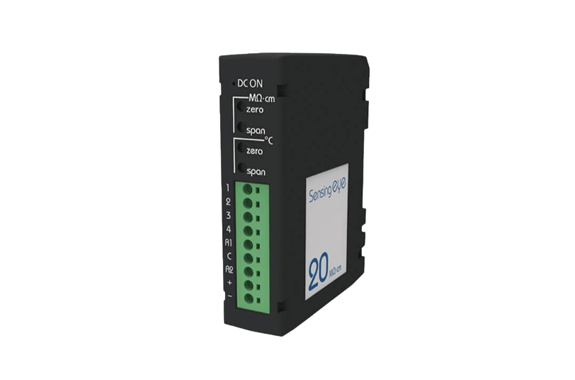

This is an ultra-thin electrical resistivity (resistivity) measurement module.
With a width of just 26mm, it’s one of the thinnest electrical resistivity (resistivity) measurement modules in the industry, allowing for space-saving installation in control panels and other applications.
It features analog output (4-20mA) and can output two parameters: water quality and water temperature.
The use of a plug-in terminal block reduces installation time.
Please use it in combination with the 7770 sensor series.
Specifications
| Product Name | Electrical Resistivity Measurement Module |
| Model | 7737-A100 |
| Measurement Range | 0 to 20 MΩ·cm |
| Measurement Temperature | 0 to 90°C |
| Power Supply | DC 24V (3.5W max) |
| Output Signal | 4–20 mA DC (2 points) |
| Ambient Temperature | 0 to 50°C |
| Ambient Humidity | 5 to 85% (no condensation) |
| Case Material | ABS |
| Dimensions | W26 × D80 × H100 |
| Included Sensor | 7770 Sensor Series |
