Manufacturer : TECHNO MORIOKA
Model: 7742-A100.

Electrical conductivity (electrical conductivity) measurement module

Surveillance; High precision measurement; Proofreading support; DC power supply; DIN rail mounting; No water quality information provided; Analog output; Measurement range is switchable.

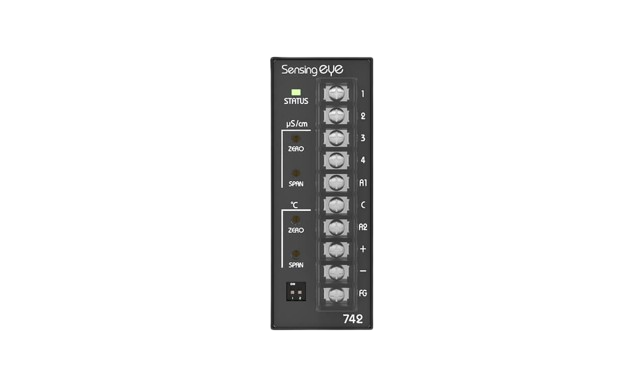

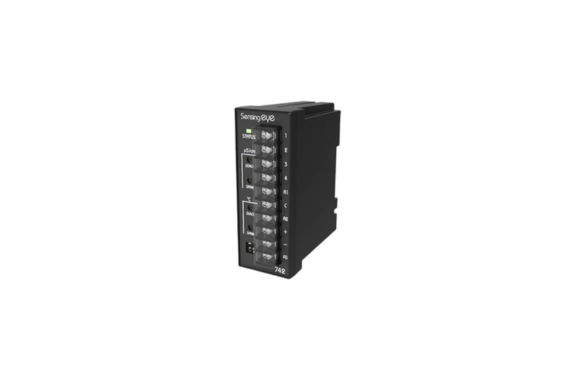

This is a slim electrical conductivity (conductivity) measurement module.
It features an analog output (4-20mA) and allows for dual output of water quality and water temperature.
Its slim and compact design allows for space-saving installation in control panels and other applications.
The measurement range can be switched using the DIP switches on the front panel (0-4/0-20/0-200/0-400μS/cm).
It can be used in a wide range of industries and applications, from measuring pure water and RO water to managing the concentration of cooling water and circulating water.
Please use it in combination with the 7701 sensor series.

Product-compatible water quality

Product usage

Product Specifications

Model	7742-A100
Measurement range	0~4μS/cm 0~20μS/cm 0~200μS/cm 0~400μS/cm
Product size	W36 x H95 x D78.3 (including terminal block)
output	Electrical resistivity: 4-20mA (selectable range: 0-FS) Water temperature: 4-20mA (0-100℃)
power supply	DC24V±10%
Measured water temperature	0 to 100°C
Usage environment	Ambient temperature 0-50°C, Ambient humidity 5-80%RH (non-condensing)
Compatible sensors	Using the 7701 sensor series: 0 to 100°C (7701-S400 only: 0 to 80°C)
others

Compatible sensors

Please select based on the pipe diameter, material, operating temperature, and pressure of the piping to be installed.

Model	7701-S300	7701-S310	7701-S600	7701-S400	7701-S500
Product image
Mounting pipe diameter	R3/4	R3/4	R3/4	R1/2	R1/2
Mounting piping material	resin piping	resin piping	Resin and metal piping	Resin and metal piping	resin piping
Operating pressure	1.5MPa or less	1.5MPa or less	1.5MPa or less	0.5MPa or less	1.5MPa or less
temperature	0-100℃	0-100℃	0-100℃	0-80℃	0-100℃
Sensor cable	Directly attached cable, 5m	Separately	Separately	Separately	Separately
