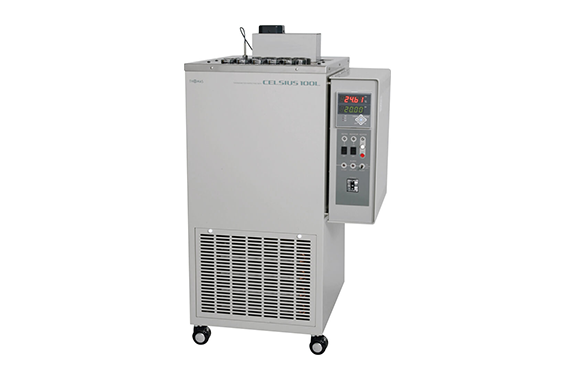

Manufacturer: Thomas Scientific Instruments Co., Ltd.
Model: Celsius 100L

• Medium to low temperature wide range type Celsius temperature range 0 to +100℃, temperature stability within ±0.05℃
• Can be used in a wide temperature range from 0°C to 100°C.
• Equipped with various safety features such as over-temperature protection and liquid level drop alarm.
• By using a liquid as the medium, a uniform and disturbance-resistant temperature environment is achieved compared to an air chamber.

External dimensions	W550 x D500 x H940 (Aquarium 830 + Stirring motor 110) mm
Internal dimensions of the tank	W300×D240×H400mm
Capacity (L)	28
Temperature range (°C)	0℃ 100℃
temperature stability	Within ±0.05℃
temperature control	Digital temperature indicator and controller, PID control system
Number of measuring thermometers	10 units (includes 10 thermometer holders and 1 holder for a reference thermometer)
heater	Sheath type 1.4kW
Refrigeration unit	Air-cooled 200W HFC-134a
Agitator	Vertical propeller agitator type 22W motor
safety equipment	Leakage circuit breaker, over-temperature prevention alarm inside the tank, low-level alarm, refrigerator protection circuit
Material	Inner tank: Stainless steel (SUS-304) Exterior: Steel plate with baked-on paint finish
power supply	AC100V 20A 50/60Hz, 3m cord (no plug), Power supply capacity 30A or more
others	Drain opening, outer diameter Φ16mm
weight	Approximately 65 kg
